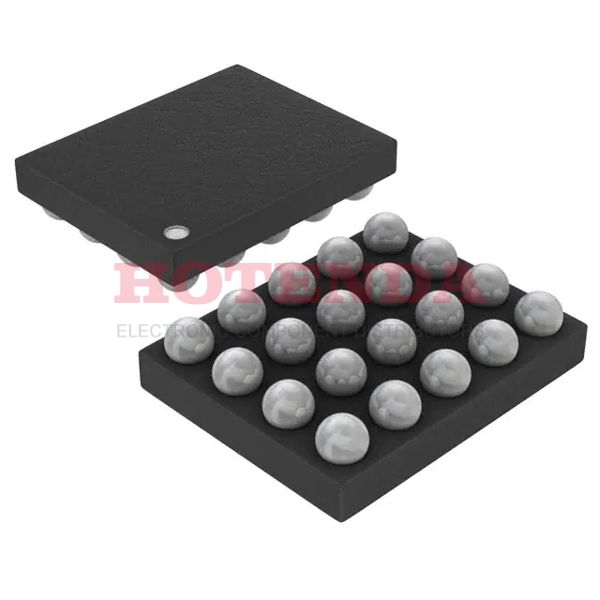

MAX15109EWP+T Overview
For optimal performance, this voltage regulator makes use of the Tape & Reel (TR) package. This regulator voltage is equipped with a type of analog integrated circuit that is called a SWITCHING REGULATOR voltage regulator. There is a 20-WFBGA, WLBGA package available for this voltage regulator, as DC DC switching regulator is space-saving. There are 1 outputs configured on this voltage regulator 12v. Programmable outputs are generated on the output pins of this adjusting voltage regulator. A voltage regulator 12v such as this one fits the Surface Mount mounting bracket. The operating temperature should be kept at -40°C~85°C TA when the voltage regulator 12v is in operation. The switching frequency of this DC-DC switching regulator reaches 1MHz. A dc to dc voltage regulator's minimum input voltage of 2.7V is required for this voltage regulator to operate. According to the table below, DC DC switching regulator's output voltage (Min/Fixed) is equal to 0.675V 0.725V 0.8V 0.9V. DC DC switching regulator's maximum design flexibility comes from its output current of 8A. DC/DC regulators such as this one belong to the MAX15109 family of products. There is a possibility that DC DC switching regulator can give voltage at 900mV volts. There are 20 pins used for switching regulator operation. With a supply voltage of 5.5V, this harley voltage regulator works.
MAX15109EWP+T Features
1 outputs
20 pins
Operating supply voltage of 5.5V
