ICM7242IWE Overview

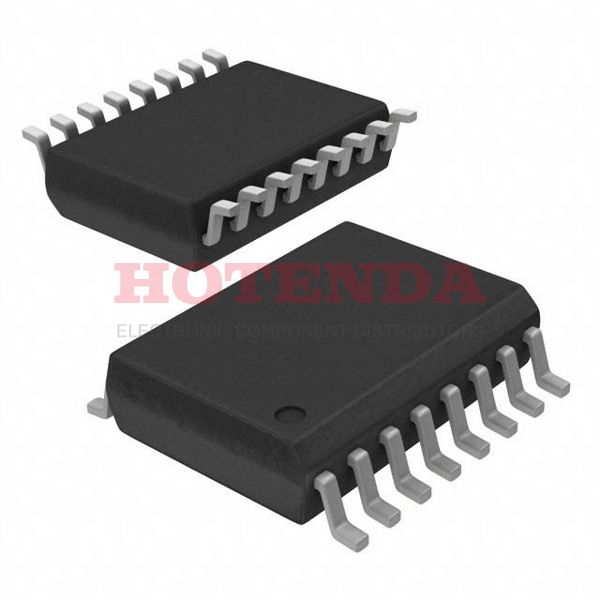

In the packaging, the clock timer is enclosed with the 16-SOIC (0.295, 7.50mm Width) code on the back. A frequency of 15MHz is set for the programmable timer.It is used to pack in Tube case. It is recommended to mount in type Surface Mount.2V~16V is the maximum voltage that can be supplied by the programmable timer.The type of chips can be divided into Counter/Timer Circuit (CTC), Binary. The operating temperature of this timer clock is -20°C~85°C. To mount this digital timer with Surface Mount. The operating supply voltage is rated at 800μA voltage. It is based on ICM7242. The supply voltage of the programmable timer can rate 5V. The number of the chip's terminations sums up to 16. Its subcategory belongs to Analog Waveform Generation Functions.
ICM7242IWE Features
Operate frequency at 15MHz
Package / Case: Tube
Mounting Type:Surface Mount
ICM7242IWE Applications
There are a lot of Maxim Integrated ICM7242IWE Programmable Timers & Oscillators applications.
- Thermostats
- Power-Gating Applications
- Sensor Node
- High Vibration, High Acceleration Environments
- Periodic “Wake-Up” Call
- Intruder Detection
- Watchdog Timers
- Consumer Electronics
- Home Automation Sensors
- Tamper Detection
