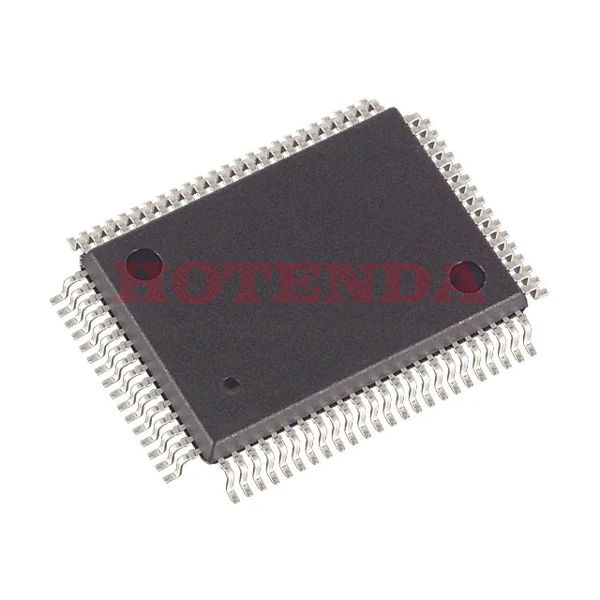

DS5003-CS1+ Overview
The package is 80-BQFP-shaped. There are 32 I/Os. In the case of the IC chip, the type of mounting is Surface Mount. Microcontroller is based on the 8-Bit core architecture. The type of program memory it uses is NVSRAM. Temperatures in the range of 0°C~70°C TA are operated by this Microcontroller. It is part of the DS500x series of electrical components. Having a size of External, Microcontroller has a program memory of X bytes. A 8051 Core Processor is at the core of this Microcontroller. Using the base part number DS5003, you will be able to find alternatives for the part. Using a 16MHz frequency, this electronic part can perform efficiently. On the chip, 80 pins are accessible. In total, there are 2 timers/counters on the device. There is SRAM memory on this piece of equipment. In addition, it comes with a 8051 core architecture. It has 32 Programmable Input/Output pins that can be programmed. A total of 8 UART channels are available on it.
DS5003-CS1+ Features
80-BQFP package
Mounting type of Surface Mount
Minimum temperature of 0°C
DS5003-CS1+ Applications
There are a lot of Maxim Integrated
DS5003-CS1+ Microcontroller applications.
- Instrument control
- Toys
- Robots
- Radio
- Television
- Heater/Fan
- Calculator
- Kindle
- Christmas lights
- 3D printers
