DS4026S+WCN Overview

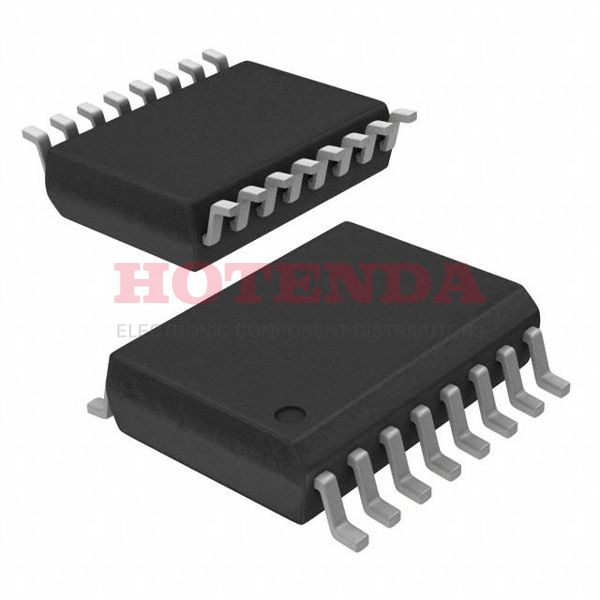

A 16-SOIC (0.295, 7.50mm Width) box encloses the digital timer. A frequency of 25MHz is set for the programmable timer.It is used to pack in Tube case. It is recommended that you use mounting type Surface Mount.It is possible to supply a voltage of 3.135V~3.465V to the programmable timer.The type of chips can be divided into Temperature, Compensated Crystal Oscillator (TCXO). The operating temperature of this timer clock is -40°C~85°C. To mount this digital timer with Surface Mount. The operating supply voltage is rated at 1.5mA voltage. It is based on DS4026.
DS4026S+WCN Features
Operate frequency at 25MHz
Package / Case: Tube
Mounting Type:Surface Mount
DS4026S+WCN Applications
There are a lot of Maxim Integrated DS4026S+WCN Programmable Timers & Oscillators applications.
- Clutch Actuator circuit
- Motor control
- Remote Data-Logger
- Always On Systems
- Building Automation
- Electric Vehicles
- Consumer Electronics
- Long Time One Shot
- Low-Power Wireless
- Home Automation Sensors
