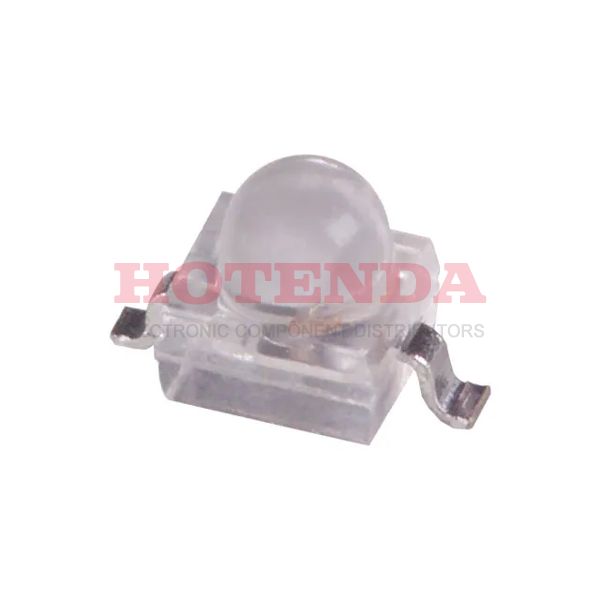

SSL-LXA228SRC-TR11 datasheet pdf and LED Indication - Discrete product details from Lumex Opto/Components Inc. stock available on our website
SOT-23
SSL-LXA228SRC-TR11 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
14 Weeks
Mount
Surface Mount
Mounting Type
Surface Mount
Package / Case
2-SMD, Gull Wing
Number of Pins
2
Packaging
Tape & Reel (TR)
Published
2007
Size / Dimension
2.50mm Lx2.00mm W
Pbfree Code
yes
Part Status
Active
Moisture Sensitivity Level (MSL)
4 (72 Hours)
Number of Terminations
2
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Color
Red
Subcategory
Visible LEDs
Power Rating
60mW
Packing Method
TAPE AND REEL
Number of Functions
1
Configuration
Standard
Voltage - Forward (Vf) (Typ)
1.7V
Viewing Angle
25°
Optoelectronic Device Type
SINGLE COLOR LED
Forward Current
20mA
Current - Test
20mA
Lens Style
Round with Domed Top
Lens Size
1.90mm Dia
Luminous Intensity
600 mcd
Lens Transparency
Clear
Lens Color
Colorless
Number of LEDs
1
T-code
T-3/4
Dominant Wavelength
660 nm
Height
3mm
REACH SVHC
No SVHC
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
In-Stock:9241 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
SSL-LXA228SRC-TR11 Product Details
The Lumex LED Indication - Discrete SSL-LXA228SRC-TR11 is a high-performance LED light source designed for a variety of applications. This LED is a red clear 2SMD GW (green white) LED with a 2.8mm diameter and a 0.6mm height. It has a wide viewing angle of 120° and a luminous intensity of 10mcd. The LED is RoHS compliant and has a long life expectancy of up to 100,000 hours.
Features
• 2.8mm diameter and 0.6mm height • Wide viewing angle of 120° • Luminous intensity of 10mcd • RoHS compliant • Long life expectancy of up to 100,000 hours
Application
The Lumex LED Indication - Discrete SSL-LXA228SRC-TR11 is suitable for a variety of applications, including automotive, industrial, and consumer electronics. It can be used for backlighting, indicators, and displays. It is also suitable for use in medical devices, such as blood pressure monitors and heart rate monitors.
