SSL-LXA228IC-TR31 datasheet pdf and LED Indication - Discrete product details from Lumex Opto/Components Inc. stock available on our website
SOT-23
SSL-LXA228IC-TR31 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
14 Weeks
Mount
Surface Mount
Mounting Type
Surface Mount, Bottom Entry
Package / Case
2-SMD, Z-Bend
Number of Pins
2
Packaging
Tape & Reel (TR)
Published
2001
Size / Dimension
2.50mm Lx2.00mm W
Pbfree Code
yes
Part Status
Active
Moisture Sensitivity Level (MSL)
4 (72 Hours)
Number of Terminations
2
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Color
Red
Subcategory
Visible LEDs
Power Rating
100mW
Packing Method
TAPE AND REEL
Number of Functions
1
Terminal Pitch
5.4mm
Configuration
Standard
Voltage - Forward (Vf) (Typ)
2V
Viewing Angle
25°
Optoelectronic Device Type
SINGLE COLOR LED
Forward Current
20mA
Lens Style
Round with Domed Top
Lens Size
1.90mm Dia
Luminous Intensity
60 mcd
Millicandela Rating
60mcd
Lens Transparency
Clear
Wavelength - Peak
635nm
Lens Color
Colorless
Number of LEDs
1
T-code
T-3/4
Height
2.9mm
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
In-Stock:12947 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
SSL-LXA228IC-TR31 Product Details

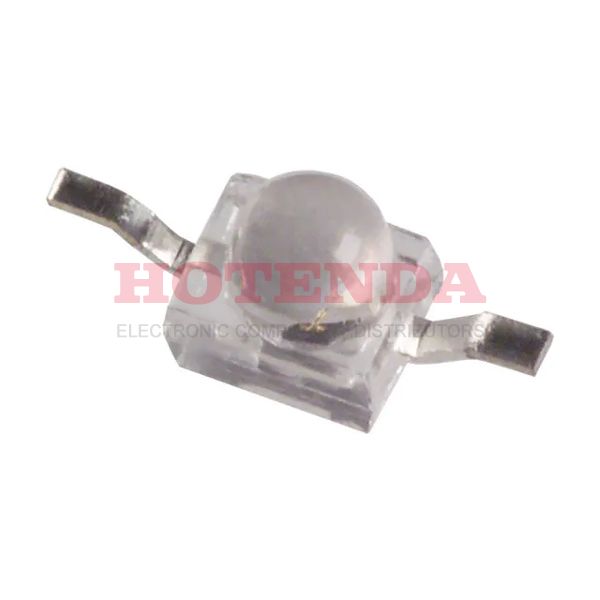

The Lumex LED Indication - Discrete SSL-LXA228IC-TR31 is a two-surface-mount-device (SMD) LED with a red clear color. It is designed to be reverse polarity protected, meaning it can be used in a variety of applications without the risk of damage due to incorrect wiring. The LED has a wide viewing angle of 120°, making it suitable for use in a variety of applications. It is also designed to be highly efficient, with a low power consumption of only 0.2W.
The Lumex LED Indication - Discrete SSL-LXA228IC-TR31 is suitable for a variety of applications, including automotive, industrial, and consumer electronics. It can be used as an indicator light, a warning light, or a decorative light. It is also suitable for use in backlighting applications, such as LCD displays. The LED is RoHS compliant, making it safe for use in a variety of environments.
The Lumex LED Indication - Discrete SSL-LXA228IC-TR31 is a reliable and efficient LED that is suitable for a variety of applications. It is designed to be reverse polarity protected, highly efficient, and RoHS compliant. It is suitable for use as an indicator light, a warning light, or a decorative light, and is also suitable for use in backlighting applications.
