Name: SSL-LX3059IGW
Brand: Lumex Opto/Components Inc.
SKU: SSL-LX3059IGW
Price: 0.62000 USD
Availability: InStock

new-10%

SSL-LX3059IGW

Manufacturer part number:SSL-LX3059IGW

Manufacturer:Lumex Opto/Components Inc.

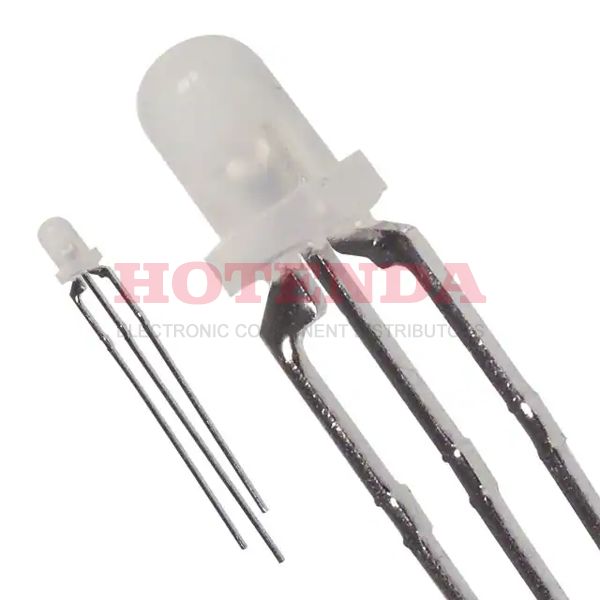

Description:LUMEX - SSL-LX3059IGW - LED, Green, Red, Through Hole, T-1 (3mm), 60 °, Round, R 20mA, G 20mA

Case Package:SOT-23

Datasheet:SSL-LX3059IGW Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	Radial - 3 Leads
Number of Pins	3
Weight	4.535924g
Packaging	Bulk
Published	2003
JESD-609 Code	e2
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
Terminal Finish	Tin/Copper (Sn/Cu)
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Color	Green, Red
Subcategory	Visible LEDs
Number of Functions	1
Configuration	Common Cathode
Power Dissipation	105mW
Voltage - Forward (Vf) (Typ)	2.2V Green 2V Red
Viewing Angle	60°
Optoelectronic Device Type	DUAL COLOR LED
Forward Current	150mA
Current - Test	20mA Green 20mA Red
Lens Style	Round with Domed Top
Lens Size	3mm T-1
Luminous Intensity	30 mcd
Millicandela Rating	30mcd Green, 30mcd Red
Illumination Color	Green, Red
Lens Transparency	Diffused
Wavelength - Peak	565nm Green 635nm Red
Lens Color	White
Number of LEDs	2
T-code	T-1
Reverse Voltage-Max	5V
Dominant Wavelength	635 nm
Diameter	3mm
Height	7.03mm
Length	12.7mm
Width	38.1mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

SSL-LX3059IGW Product Details

Description:
The Lumex SSL-LX3059IGW is a discrete LED indication light with a round shape and a T-1 (3mm) through hole package. It has a viewing angle of 60° and is available in green and red colors. It has a forward current of 20mA for both colors.

Features:
- Round shape with T-1 (3mm) through hole package
- Available in green and red colors
- Viewing angle of 60°
- Forward current of 20mA for both colors

Applications:
The Lumex SSL-LX3059IGW LED indication light is suitable for a wide range of applications, including automotive, industrial, medical, and consumer electronics. It can be used for status indication, backlighting, and decorative lighting.
