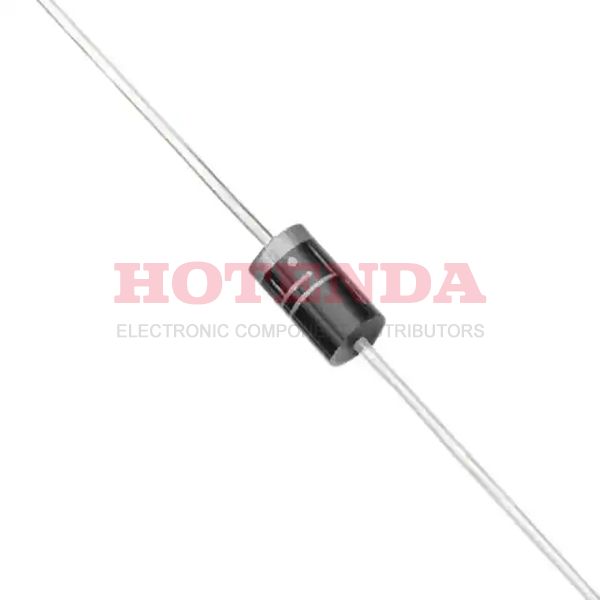

LCE6.5A

LCE6.5A

LCE6.5A

Littelfuse Inc.

LCE6.5A datasheet pdf and TVS - Diodes product details from Littelfuse Inc. stock available on our website

SOT-23

LCE6.5A Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 20 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case DO-201AA, DO-27, Axial
Number of Pins 2
Diode Element Material SILICON
Operating Temperature-55°C~175°C TJ
PackagingTape & Reel (TR)
Series LCE
JESD-609 Code e3
Pbfree Code no
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Axial
ECCN Code EAR99
Type Zener
Terminal Finish Matte Tin (Sn)
Applications General Purpose
Additional FeatureUL RECOGNIZED
Capacitance 100pF
Subcategory Transient Suppressors
Power Rating 1.5kW
Voltage - Rated DC 6.5V
Technology AVALANCHE
Terminal FormWIRE
Peak Reflow Temperature (Cel) 260
Time@Peak Reflow Temperature-Max (s) 40
Pin Count2
Operating Supply Voltage6.5V
Number of Elements 1
Polarity Unidirectional
Configuration SINGLE
Leakage Current 1mA
Power Dissipation1.5kW
Case Connection ISOLATED
Power Line ProtectionNo
Power - Peak Pulse 1500W 1.5kW
Clamping Voltage 11.2V
Peak Pulse Current100A
Reverse Standoff Voltage 6.5V
Max Surge Current100A
Peak Pulse Power 1.5kW
Test Current 10mA
Unidirectional Channels 1
Breakdown Voltage7.22V
Reverse Breakdown Voltage 7.22V
Max Breakdown Voltage 7.98V
Diameter 5.3mm
Length 9.5mm
RoHS StatusROHS3 Compliant
Lead Free Lead Free
In-Stock:12155 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$2.916407$2.916407
10$2.751328$27.51328
100$2.595593$259.5593
500$2.448672$1224.336
1000$2.310068$2310.068

About LCE6.5A

The LCE6.5A from Littelfuse Inc. is a high-performance microcontroller designed for a wide range of embedded applications. This component features LCE6.5A datasheet pdf and TVS - Diodes product details from Littelfuse Inc. stock available on our website.

Key Features

  • Advanced AVR architecture for efficient processing
  • Wide operating temperature range: -40°C to 85°C
  • Low power consumption for energy-efficient applications
  • Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

  • Industrial control systems
  • Consumer electronics
  • Automotive systems
  • IoT devices
  • Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the LCE6.5A, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
