Name: L0109ME
Brand: Littelfuse Inc.
SKU: L0109ME
Price: 0.24000 USD
Availability: InStock

new-10%

L0109ME

Manufacturer part number:L0109ME

Manufacturer:Littelfuse Inc.

Description:L0109ME datasheet pdf and Thyristors - TRIACs product details from Littelfuse Inc. stock available on our website

Case Package:SOT-23

Datasheet:L0109ME Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	15 Weeks
Mount	Through Hole
Mounting Type	Through Hole

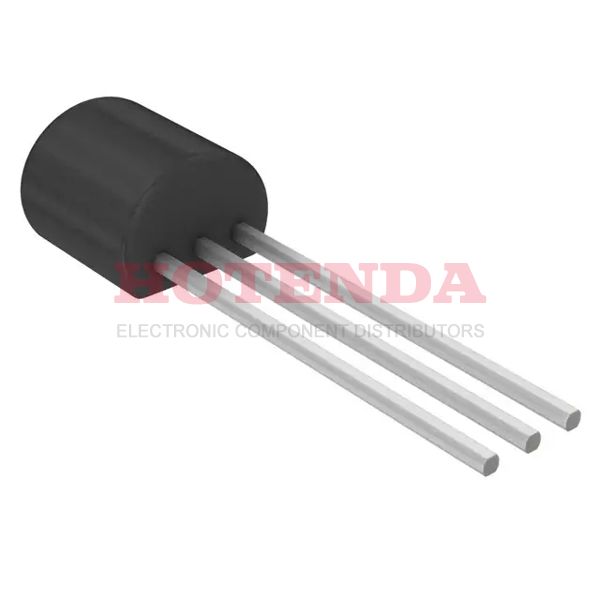

Package / Case	TO-226-3, TO-92-3 (TO-226AA)
Number of Pins	3
Operating Temperature	-40°C~125°C TJ
Packaging	Bulk
Published	2008
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
Terminal Finish	Matte Tin (Sn)
Additional Feature	HIGH RELIABILITY
Voltage - Rated DC	600V
Terminal Position	BOTTOM
Peak Reflow Temperature (Cel)	260
Reach Compliance Code	unknown
Current Rating	1A
Time@Peak Reflow Temperature-Max (s)	40
Pin Count	3
Qualification Status	Not Qualified
Number of Elements	1
Configuration	Single
RMS Current (Irms)	1A
Hold Current	10mA
Trigger Device Type	4 QUADRANT LOGIC LEVEL TRIAC
Voltage - Gate Trigger (Vgt) (Max)	1.3V
Current - Non Rep. Surge 50, 60Hz (Itsm)	10A 12A
Current - Gate Trigger (Igt) (Max)	10mA
Leakage Current (Max)	0.5mA
Critical Rate of Rise of Off-State Voltage-Min	50V/us
Triac Type	Logic - Sensitive Gate
RMS On-state Current-Max	1A
Critical Rate of Rise of Commutation Voltage-Min	2V/us
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

About L0109ME

The L0109ME from Littelfuse Inc. is a high-performance microcontroller designed for a wide range of embedded applications. This component features L0109ME datasheet pdf and Thyristors - TRIACs product details from Littelfuse Inc. stock available on our website.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the L0109ME, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
