LTST-G563EGBW datasheet pdf and LED Indication - Discrete product details from Lite-On Inc. stock available on our website
SOT-23
LTST-G563EGBW Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
12 Weeks
Mount
Surface Mount
Mounting Type
Surface Mount
Package / Case
6-SMD, J-Lead
Packaging
Tape & Reel (TR)
Published
2012
Size / Dimension
5.00mm Lx5.00mm W
JESD-609 Code
e3
Part Status
Active
Moisture Sensitivity Level (MSL)
3 (168 Hours)
Terminal Finish
Tin (Sn)
Color
Red, Green, Blue (RGB)
HTS Code
8541.40.20.00
Configuration
Independent
Voltage - Forward (Vf) (Typ)
2.2V Red 3.3V Green 3.3V Blue
Viewing Angle
120°
Optoelectronic Device Type
TRIPLE COLOR LED
Current - Test
20mA Red 20mA Green 20mA Blue
Lens Style
Round with Flat Top
Lens Size
4.00mm Dia
Luminous Intensity
420 mcd
Millicandela Rating
840mcd Red, 2100mcd Green, 420mcd Blue
Lens Transparency
Diffused
Wavelength - Peak
630nm Red 518nm Green 468nm Blue
Wavelength - Dominant
623nm Red 525nm Green 470nm Blue
Height
1.6mm
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
In-Stock:5591 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
LTST-G563EGBW Product Details

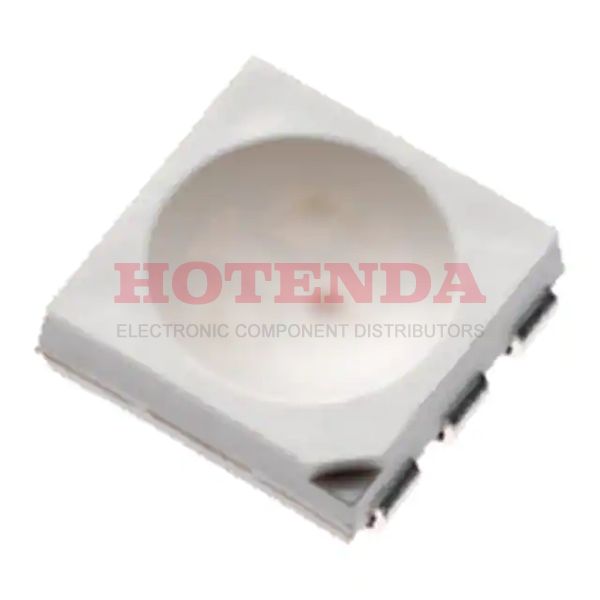

Description: The Lite-On LTST-G563EGBW is a discrete LED indication component with a 6-pin PLCC surface mount package. It is a RGB (Red, Green, Blue) diffused LED, which provides a bright and uniform light output.
Features: - 6-pin PLCC surface mount package - RGB diffused LED - Bright and uniform light output - Low power consumption - Wide viewing angle - RoHS compliant
Applications: The LTST-G563EGBW is suitable for a wide range of applications, including automotive, consumer electronics, industrial, and medical devices. It can be used for backlighting, status indication, and decorative lighting.
