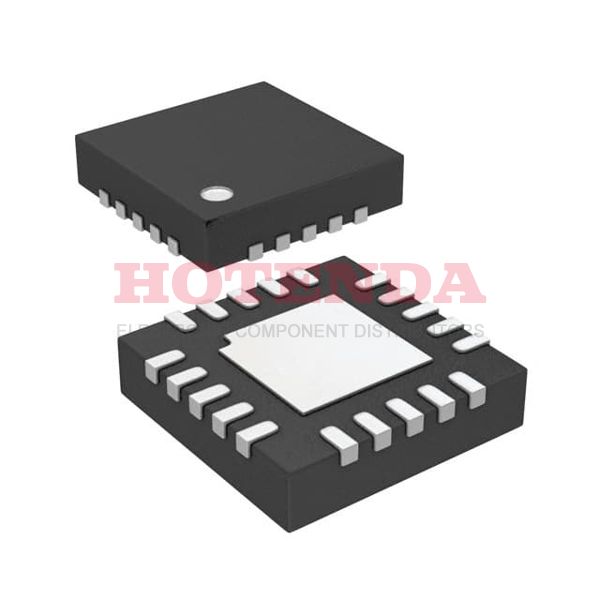

LTC3612MPUDC Overview
A Tube package is used in this voltage regulator to optimize performance. In this voltage regulator, 20 terminations are present. A SWITCHING REGULATOR analog IC is used in this voltage regulator 12v, which is the type of analog IC that this voltage regulator 12v is equipped with. In order to save space, this voltage regulator is packaged in the 20-WFQFN Exposed Pad package. 1 outputs of voltage regulator are configured. Adjustable outputs are generated on the output pins of this adjusting voltage regulator. A voltage regulator 12v such as this one fits the Surface Mount mounting bracket. Keeping dc to dc voltage regulator's operating temperature at -55°C~150°C TJ is essential when operating. A DC-DC switching regulator such as this one switches at 300kHz~4MHz. Voltage regulators like this one can operate at least with 2.25V as the dc to dc voltage regulator's minimum input voltage. It is evident from the table below that adjusting voltage regulator's output voltage (Min/Fixed) is equal to 0.6V. This voltage regulator 12v features maximum design flexibility thanks to its 3A output current. As far as the voltage input is concerned, DC DC switching regulator can accept up to 5.5V. Due to its NOT SPECIFIED high peak reflow temperature, this voltage regulator 12v is virtually indestructible. An input voltage of 3.3V is required to meet the requirements of the switching regulator operation.
LTC3612MPUDC Features
1 outputs
Peak reflow temperature (Cel) of NOT SPECIFIED
LTC3612MPUDC Applications
There are a lot of Linear Technology/Analog Devices
LTC3612MPUDC Voltage Regulators applications.
- Various precision measuring instruments
- Various precision measuring detectors
- Flaw detection equipment
- Balance equipment
- Industrial robots
- Industrial controllers
- Die casting equipment
- Injection molding machinery
- Various CNC machine tools
- Machining centers
