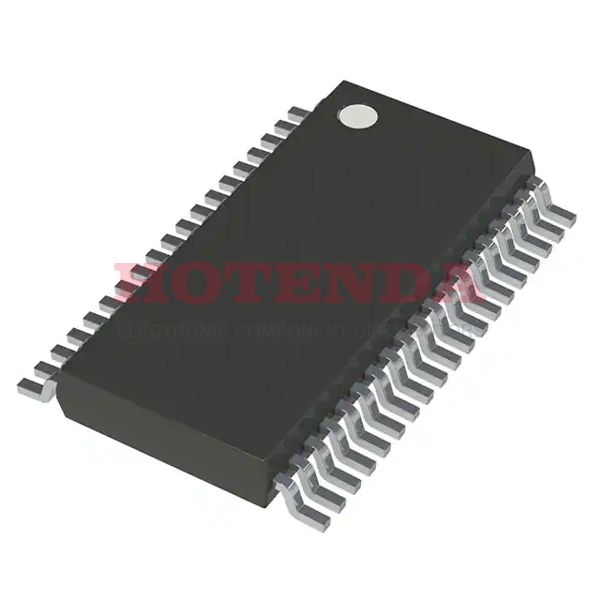

LT3692AEFE Overview
For optimal performance, this voltage regulator makes use of the Tube package. In this voltage regulator, there are a total of 38 terminations. There is one type of analog IC that this voltage regulator is equipped with, and that is the DUAL SWITCHING CONTROLLER type. In order to save space, this harley voltage regulator is available in the 38-TFSOP (0.173, 4.40mm Width) Exposed Pad package. There are 2 outputs configured on this voltage regulator 12v. There are output pins on this DC DC switching regulator that generate Adjustable output. Surface Mount-mounting is compatible with this switching regulator. The operating temperature should be kept at -40°C~125°C TJ when the voltage regulator 12v is in operation. This DC-DC switching regulator has a switching frequency of 110kHz~2.5MHz. The voltage regulator can operate with a dc to dc voltage regulator's minimum input voltage of 3V. As a result, the output voltage of the voltage regulator 12v (Min/Fixed) is 0.8V. It features maximum design flexibility due to dc to dc voltage regulator's 3.5A output current. Voltage regulator has a maximum input voltage of 36V. In order to meet the operation requirements,voltage regulator is designed to provide a nominal input voltage of 15V. There is a subcategory called Switching Regulator or Controllers that includes this voltage regulator. Based on the maximal adjusting voltage regulator's output voltage of 34.2V, adjusting voltage regulator can be operated easily.
LT3692AEFE Features
2 outputs
LT3692AEFE Applications
There are a lot of Linear Technology/Analog Devices
LT3692AEFE Voltage Regulators applications.
- Servo drive system
- Digital display device
- Linear guide
- Ball screw pair
- Computer application technology
- Network technology
- Automation technology
- CMM
- Various precision measuring instruments
- Various precision measuring detectors
