Name: LT3653IDCB
Brand: Linear Technology/Analog Devices
SKU: LT3653IDCB
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	8-WFDFN Exposed Pad
Surface Mount	YES
Operating Temperature	-40°C~125°C TJ
Packaging	Tube
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Subcategory	Switching Regulator or Controllers
Technology	BIPOLAR
Terminal Position	DUAL
Peak Reflow Temperature (Cel)	260
Terminal Pitch	0.45mm
Time@Peak Reflow Temperature-Max (s)	30
JESD-30 Code	R-PDSO-N8
Function	Step-Down
Number of Outputs	1
Voltage - Input (Max)	30V
Output Voltage	4.8V
Output Type	Adjustable
Voltage - Input (Min)	7.5V
Input Voltage-Nom	12V
Analog IC - Other Type	BATTERY CHARGE CONTROLLER
Output Configuration	Positive
Current - Output	1.2A
Voltage - Output (Min/Fixed)	4.8V
Topology	Buck
Control Mode	CURRENT-MODE
Frequency - Switching	1.5MHz
Control Technique	PULSE WIDTH MODULATION
Synchronous Rectifier	No
Voltage - Output (Max)	6V
Height Seated (Max)	0.8mm
Length	3mm
Width	2mm
RoHS Status	Non-RoHS Compliant

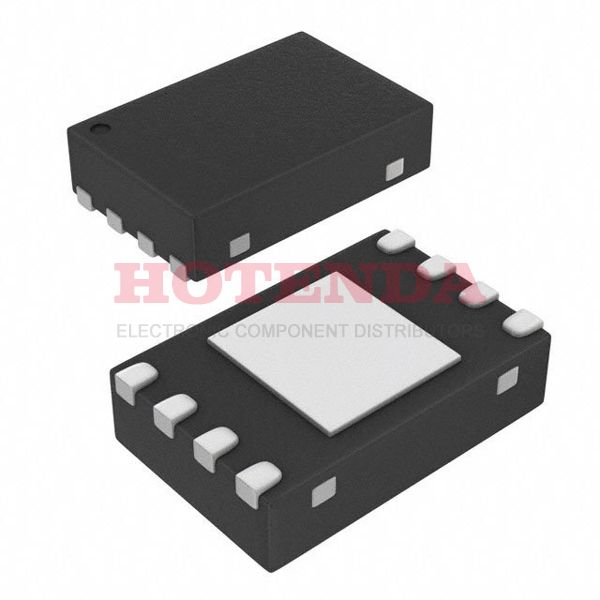

LT3653IDCB Product Details

LT3653IDCB Overview

A Tube package is used in this voltage regulator to optimize performance. This harley voltage regulator has 8 terminations. As this regulator voltage is equipped with an analog IC of the type BATTERY CHARGE CONTROLLER, it is a BATTERY CHARGE CONTROLLER-type voltage regulator. Space-saving 8-WFDFN Exposed Pad packages are available for this harley voltage regulator. A total of 1 outputs are configured in this voltage regulator. On its output pins, this adjusting voltage regulator generates Adjustable output. This switching regulator is designed to fit the Surface Mount mounting system. During switching regulator operation, the operating temperature should remain at -40°C~125°C TJ. A DC-DC switching regulator such as this one switches at 1.5MHz. There is no dc to dc voltage regulator's minimum input voltage requirement for this regulator. It is evident from the table below that adjusting voltage regulator's output voltage (Min/Fixed) is equal to 4.8V. Featuring a maximum design flexibility of 1.2A, dc to dc voltage regulator has a maximum output current of 1.2A. 30V volts is DC DC switching regulator's maximum input voltage. Due to its 260 high peak reflow temperature, this voltage regulator 12v is virtually indestructible. To meet the switching regulator operation requirements, a nominal input voltage of 12V is provided. The regulator voltage that you are looking at belongs to the subcategory Switching Regulator or Controllers. The voltage DC DC switching regulator can provide is up to 4.8V volts. On the basis of 6V's maximal output voltage, DC DC switching regulator can be operated easily.
