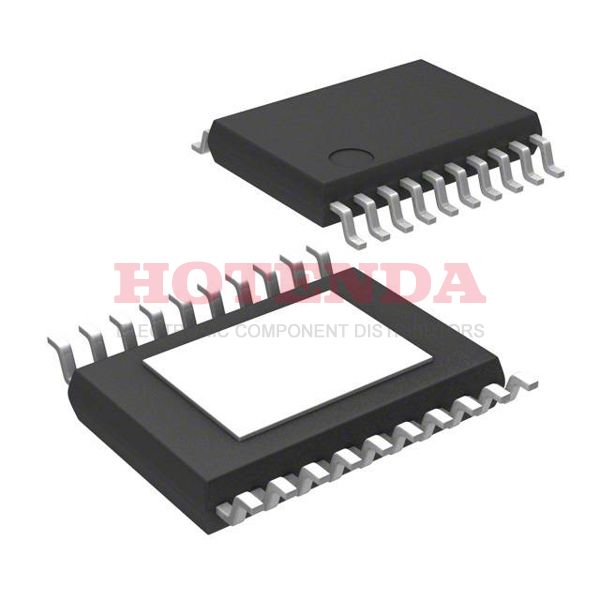

LT3579EFE Overview
As a result of the use of the Tube package, the performance of this voltage regulator is optimized. Throughout this voltage regulator, there are 20 terminations. There is a SWITCHING REGULATOR type analog IC in this voltage regulator 12v that is used to convey analog signals. Space savings are achieved by placing this voltage regulator in the 20-TSSOP (0.173, 4.40mm Width) Exposed Pad package. There are 1 outputs configured on the voltage regulator. Adjusting voltage regulator's output pins generate Adjustable output. The voltage regulator 12v fits the Surface Mount mounting hole. -40°C~125°C TJ should be the operating temperature when voltage regulator is operating. 200kHz~2.5MHz is the switching frequency of this DC-DC switching regulator. The regulator is capable of operating with a dc to dc voltage regulator's minimum input voltage of 2.5V. In this adjusting voltage regulator, the output voltage (Min/Fixed) equates to 1.215V. A maximum design flexibility is provided by the 6A Switch output current of voltage regulator. 16V volts is DC DC switching regulator's maximum input voltage. As a result of the 225 peak reflow temperature, this regulator is essentially indestructible. In order to meet the operation requirements,voltage regulator is designed to provide a nominal input voltage of 5V. There is a subcategory of this regulator voltage called Switching Regulator or Controllers. The maximal output voltage of 42V Switch allows adjusting voltage regulator for simple operation.
LT3579EFE Features
1 outputs
Peak reflow temperature (Cel) of 225
LT3579EFE Applications
There are a lot of Linear Technology/Analog Devices LT3579EFE Voltage Regulators applications.
- Linear guide
- Hydrogen power
- Imported equipment
- Wide-range voltage regulation circuits
- Household control circuits
- seismic instrument power circuits
- CMM
- Low output voltage switching power supply circuits
- Milling machines
- Communication system
