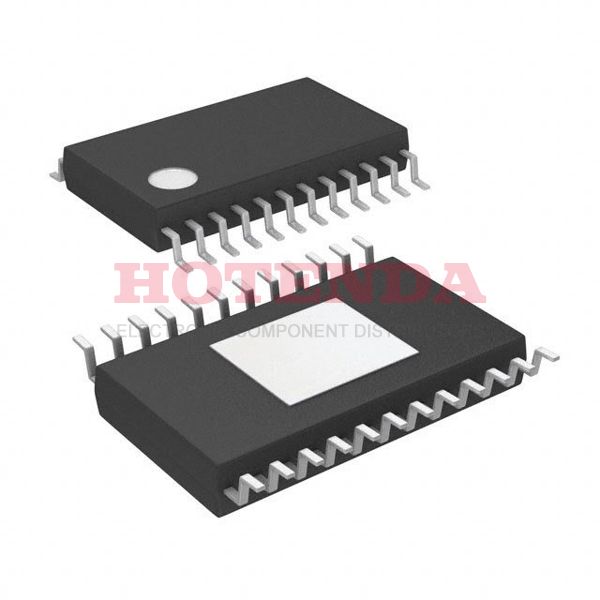

LT3514EFE Overview
It uses the Tube package in order to optimize the performance of this voltage regulator. As you can see, this harley voltage regulator contains 24 terminations. There is a SWITCHING REGULATOR type analog IC in this voltage regulator 12v that is used to convey analog signals. This harley voltage regulator is available in the 24-TSSOP (0.173, 4.40mm Width) Exposed Pad package for the purpose of space saving. There are 3 outputs configured on this voltage regulator 12v. There are output pins on this DC DC switching regulator that generate Adjustable output. Surface Mount-mounting is compatible with this switching regulator. During switching regulator operation, the operating temperature should remain at -40°C~125°C TJ. A DC-DC switching regulator of this type operates at a switching frequency of 270kHz~2.1MHz. Despite its low input voltage, this voltage regulator can operate. DC DC switching regulator's output voltage (Min/Fixed) amounts to 0.8V. Featuring a 2A 1A output current, dc to dc voltage regulator offers maximum design flexibility. There is a maximum input voltage of 36V for this voltage regulator 12v. To meet the operation requirements, voltage regulator is designed to provide 12V as the nominal input voltage.
LT3514EFE Features
3 outputs
LT3514EFE Applications
There are a lot of Linear Technology/Analog Devices LT3514EFE Voltage Regulators applications.
- Ball screw pair
- Electric heating, lighting
- Computer-related products
- Drilling machines
- Printing equipment
- Combined machine tools
- Precision electronic equipment
- Refrigerators of central air conditioners
- CNC system
- Various CNC machine tools
