Name: LT3089IDF
Brand: Linear Technology/Analog Devices
SKU: LT3089IDF
Availability: InStock

new-10%

LT3089IDF

Manufacturer part number:LT3089IDF

Manufacturer:Linear Technology/Analog Devices

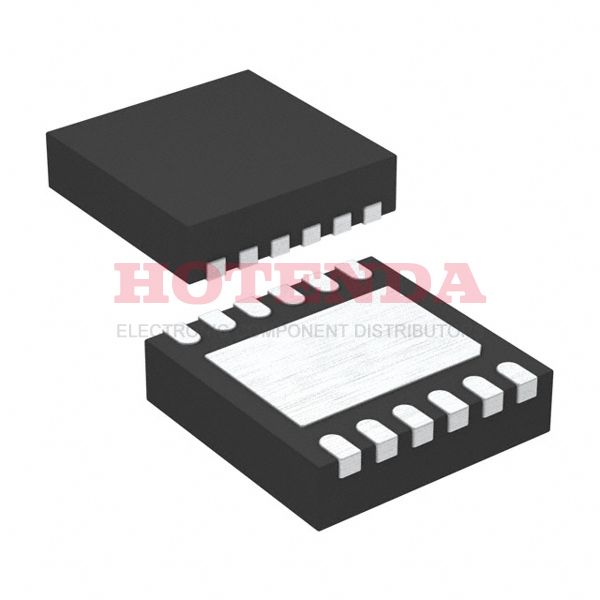

Description:Current Limit Adjustable 0.5mm PMIC 12 12-WFDFN Exposed Pad

Case Package:SOT-23

Datasheet:LT3089IDF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Surface Mount	YES
Package / Case	12-WFDFN Exposed Pad
Mounting Type	Surface Mount
Packaging	Tube
Operating Temperature	-40°C~125°C
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	12
Terminal Finish	Matte Tin (Sn)
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	1
Terminal Pitch	0.5mm
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	12
Current - Supply (Max)	3mA
Voltage - Input (Max)	36V
Output Type	Adjustable
Output Configuration	Positive
Current - Output	800mA
Control Features	Current Limit
Voltage - Output (Min/Fixed)	0V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Reverse Polarity, Short Circuit
Current - Quiescent (Iq)	50.5μA
Voltage Dropout (Max)	1.65V @ 800mA
PSRR	90dB ~ 20dB (120Hz ~ 1MHz)
Dropout Voltage1-Nom	1.47V
Voltage - Output (Max)	34.5V
Input-Output Voltage Differential-Max	36V
Input-Output Voltage Differential-Min	2V
Length	4mm
Width	4mm
Height Seated (Max)	0.8mm
RoHS Status	Non-RoHS Compliant

LT3089IDF Product Details

LT3089IDF Overview

Deliveries are in Tube cases. The package is in a 12-WFDFN Exposed Pad case. Basically, the voltage regulator chip is made up of 12 terminations. In this case, Adjustable represents the output type of the Voltage Regulated IC. This part implements 1 regulator ICs, which can be found in the following table. Regulator IC varies the range of Surface Mount operating temperatures. The Voltage Regulated IC operates at a temperature of -40°C~125°C degrees, which is its operating temperature. It is configured for output function Positive on this regulator. There is an output current of 800mA on this regulator. The chip consists of a total of 12 pins in total.
