Name: LT3070MPUFD
Brand: Linear Technology/Analog Devices
SKU: LT3070MPUFD
Availability: InStock

new-10%

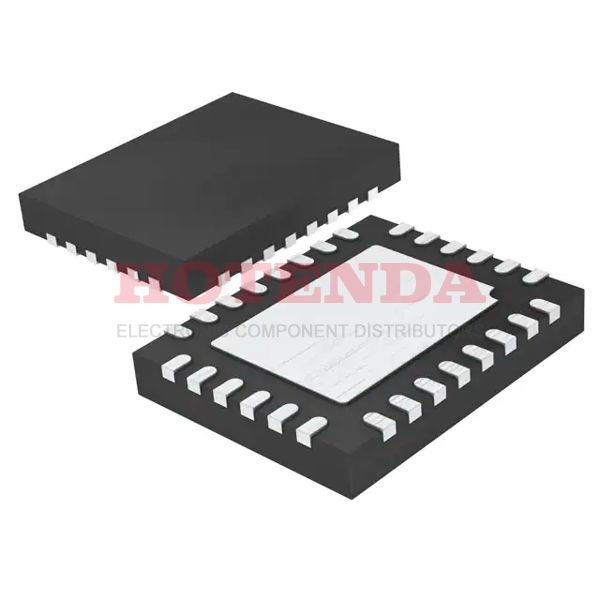

LT3070MPUFD

Manufacturer part number:LT3070MPUFD

Manufacturer:Linear Technology/Analog Devices

Description:Enable, Power Good, Soft Start Programmable 0.5mm PMIC 28 28-WFQFN Exposed Pad

Case Package:SOT-23

Datasheet:LT3070MPUFD Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Mounting Type	Surface Mount
Package / Case	28-WFQFN Exposed Pad
Surface Mount	YES
Number of Pins	28
Operating Temperature	-55°C~125°C
Packaging	Tube
Published	2006
JESD-609 Code	e0
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	28
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Position	QUAD
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	235
Number of Functions	1
Terminal Pitch	0.5mm
Reach Compliance Code	not_compliant
Time@Peak Reflow Temperature-Max (s)	20
Pin Count	28
Current - Supply (Max)	2.3mA
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	3V
Output Type	Programmable
Output Configuration	Positive
Current - Output	5A
Control Features	Enable, Power Good, Soft Start
Voltage - Output (Min/Fixed)	0.8V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Current - Quiescent (Iq)	1.8mA
Voltage Dropout (Max)	0.15V @ 5A
PSRR	66dB (120Hz)
Dropout Voltage1-Nom	0.085V
Output Voltage1-Min	0.8V
Voltage - Output (Max)	1.8V
Adjustability	ADJUSTABLE
Load Regulation-Max(%)	2.2%
Length	5mm
Height Seated (Max)	0.8mm
Width	4mm
RoHS Status	Non-RoHS Compliant

LT3070MPUFD Product Details

LT3070MPUFD Overview

In the case of Tube cases, the regulater IC is delivered. Packaging of the Liner regulator IC takes the form of a 28-WFQFN Exposed Pad case. The PMIC chip has 28 terminations. Programmable is the Voltage Regulator Chip's output type. Linear IC consists of 1 battery regulators. The range of operating temperatures of Surface Mount are programmable in the Voltage Regulator Chip, so that the temperature can be varied as desired. Keeping the temperature at -55°C~125°C degrees is necessary for this regulator to function. There is an output function of Positive configured for this regulator. Currently, 5A are being output by it at the moment. The sum of the pins in this unit is 28. The part includes 1 outputs in order to ensure that the voltage regulator IC performs effectively and in a timely manner. On the chip, there are pins for the 28 axis.
