Name: LT3061IDCB
Brand: Linear Technology/Analog Devices
SKU: LT3061IDCB
Availability: InStock

new-10%

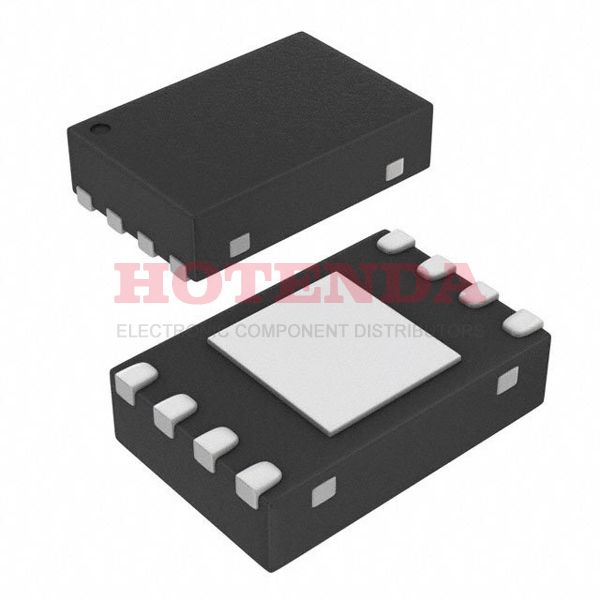

LT3061IDCB

Manufacturer part number:LT3061IDCB

Manufacturer:Linear Technology/Analog Devices

Description:Enable, Soft Start Adjustable 0.45mm PMIC 8 8-WFDFN Exposed Pad

Case Package:SOT-23

Datasheet:LT3061IDCB Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	8-WFDFN Exposed Pad
Surface Mount	YES
Operating Temperature	-40°C~125°C
Packaging	Tube
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
Terminal Finish	Matte Tin (Sn)
Packing Method	TR
Terminal Position	DUAL
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	1
Terminal Pitch	0.45mm
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	8
JESD-30 Code	R-PDSO-N8
Current - Supply (Max)	4mA
Number of Outputs	1
Voltage - Input (Max)	45V
Output Type	Adjustable
Output Configuration	Positive
Current - Output	100mA
Control Features	Enable, Soft Start
Output Voltage 1	5V
Input Voltage (Min)	5.6V
Voltage - Output (Min/Fixed)	0.6V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Reverse Polarity
Current - Quiescent (Iq)	90μA
Voltage Dropout (Max)	0.43V @ 100mA
PSRR	85dB (120Hz)
Dropout Voltage1-Nom	0.25V
Output Voltage1-Min	4.9V
Voltage Tolerance-Max	2%
Voltage - Output (Max)	19V
Input Voltage Absolute-Max	50V
Adjustability	FIXED
Length	3mm
Height Seated (Max)	0.8mm
Width	2mm
RoHS Status	Non-RoHS Compliant

LT3061IDCB Product Details

LT3061IDCB Overview

Tube cases are used for delivery. The Liner regulator IC is packaged in 8-WFDFN Exposed Pad case. On the Linear IC itself, there are 8 terminations. Adjustable is the output type of the Voltage Regulator IC. As part of this electrical component, 1 regulators are implemented. Variations are made to the Surface Mount operating temperature range by the Voltage Regulator IC. Default settings are set to -40°C~125°C degrees. There is a Positive configured as the output function for this IC regulator. There is a current output of 100mA from this regulator IC. There are a total of 8 pins on this board. There are 1 outputs total on this voltage regulator IC in order to ensure that prompt and sufficient performance is achieved. TR is the way in which the voltage regulator IC is packed.
