Name: LT3055EDE
Brand: Linear Technology/Analog Devices
SKU: LT3055EDE
Availability: InStock

new-10%

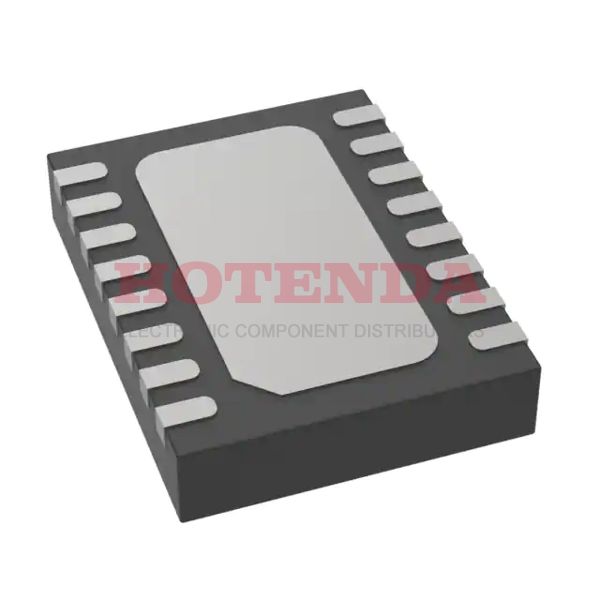

LT3055EDE

Manufacturer part number:LT3055EDE

Manufacturer:Linear Technology/Analog Devices

Description:Current Limit, Enable, Power Good, Soft Start Adjustable 0.45mm PMIC 16 16-WFDFN Exposed Pad

Case Package:SOT-23

Datasheet:LT3055EDE Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	16-WFDFN Exposed Pad
Surface Mount	YES
Operating Temperature	-40°C~125°C
Packaging	Tube
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	16
Terminal Finish	Matte Tin (Sn)
Terminal Position	DUAL
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	1
Terminal Pitch	0.45mm
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	16
Current - Supply (Max)	25mA
Voltage - Input (Max)	45V
Output Type	Adjustable
Output Configuration	Positive
Current - Output	500mA
Control Features	Current Limit, Enable, Power Good, Soft Start
Output Voltage 1	3.3V
Input Voltage (Min)	3.9V
Voltage - Output (Min/Fixed)	0.6V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Reverse Polarity
Current - Quiescent (Iq)	130μA
Voltage Dropout (Max)	0.59V @ 500mA
PSRR	85dB (120Hz)
Output Voltage1-Min	3.234V
Voltage - Output (Max)	40V
Length	4mm
Height Seated (Max)	0.8mm
Width	3mm
RoHS Status	Non-RoHS Compliant

LT3055EDE Product Details

LT3055EDE Overview

Deliveries are in Tube cases. The package is in a 16-WFDFN Exposed Pad case. Basically, the voltage regulator chip is made up of 16 terminations. In this case, Adjustable represents the output type of the Voltage Regulated IC. This part implements 1 regulator ICs, which can be found in the following table. Regulator IC varies the range of Surface Mount operating temperatures. The Voltage Regulated IC operates at a temperature of -40°C~125°C degrees, which is its operating temperature. It is configured for output function Positive on this regulator. There is an output current of 500mA on this regulator. The chip consists of a total of 16 pins in total.
