Name: LT3029IDE
Brand: Linear Technology/Analog Devices
SKU: LT3029IDE
Availability: InStock

new-10%

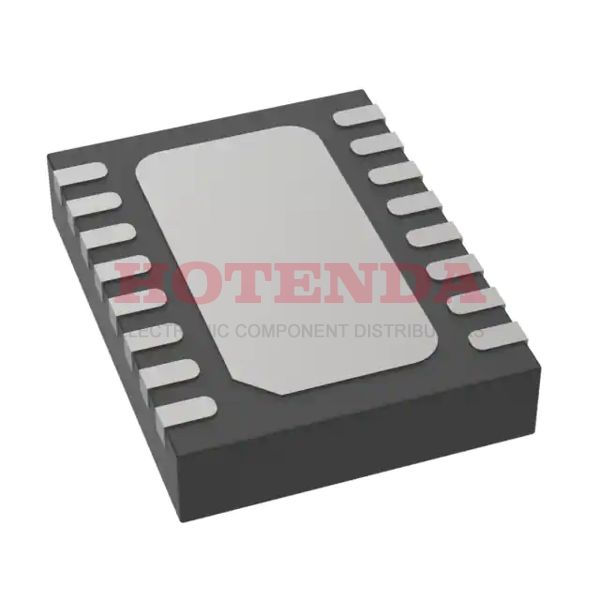

LT3029IDE

Manufacturer part number:LT3029IDE

Manufacturer:Linear Technology/Analog Devices

Description:Enable Adjustable 0.45mm PMIC 16 16-WFDFN Exposed Pad

Case Package:SOT-23

Datasheet:LT3029IDE Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	16-WFDFN Exposed Pad
Surface Mount	YES
Operating Temperature	-40°C~125°C
Packaging	Tube
Published	2011
JESD-609 Code	e0
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	16
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Position	DUAL
Terminal Form	NO LEAD
Number of Functions	1
Terminal Pitch	0.45mm
Reach Compliance Code	not_compliant
Pin Count	16
JESD-30 Code	R-PDSO-N16
Number of Outputs	2
Qualification Status	Not Qualified
Voltage - Input (Max)	20V
Output Type	Adjustable
Output Configuration	Positive
Current - Output	500mA 500mA
Control Features	Enable
Voltage - Output (Min/Fixed)	1.215V
Number of Regulators	2
Protection Features	Over Current, Over Temperature, Reverse Polarity
Voltage Dropout (Max)	0.46V @ 500mA 0.46V @ 500mA
PSRR	67dB (120Hz)
Dropout Voltage1-Nom	0.3V
Voltage - Output (Max)	19.5V
Length	4mm
Height Seated (Max)	0.8mm
Width	3mm
RoHS Status	Non-RoHS Compliant

LT3029IDE Product Details

LT3029IDE Overview

The package contains a Tube case. In 16-WFDFN Exposed Pad cases, it is packaged. This gadget has 16 terminations on it, each with a different function. Adjustable is the IC Voltage Regulator's output type. A total of 2 regulators are implemented in this eletric component. Surface Mount operating temperature varies depending on the IC Voltage Regulator. The Regulator IC chip is set to operate at -40°C~125°C degrees. It has been configured that the output function of this IC regulator is Positive. There is an output of 500mA 500mA at the moment. 16 pins make up the sum of this IC voltage regulator. As a result of this IC voltage regulator's 2 outputs, it ensures prompt, adequate performance for all your applications.
