Name: LT3020IDD
Brand: Linear Technology/Analog Devices
SKU: LT3020IDD
Availability: InStock

new-10%

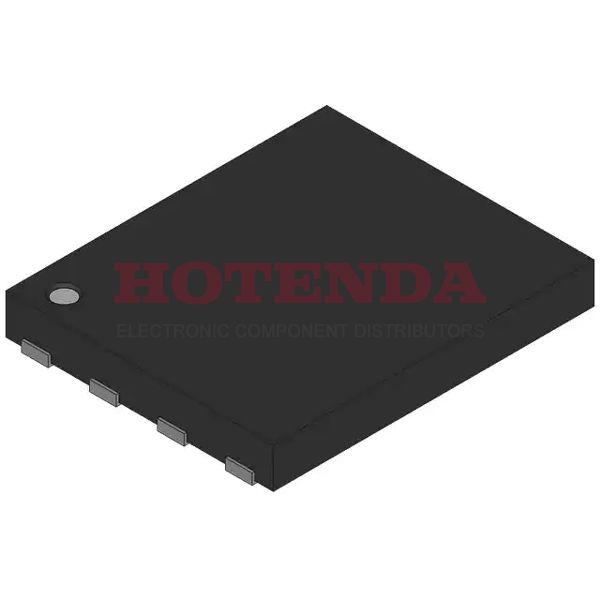

LT3020IDD

Manufacturer part number:LT3020IDD

Manufacturer:Linear Technology/Analog Devices

Description:Enable Adjustable 0.5mm PMIC 8 8-WFDFN Exposed Pad

Case Package:SOT-23

Datasheet:LT3020IDD Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Mounting Type	Surface Mount
Package / Case	8-WFDFN Exposed Pad
Surface Mount	YES
Number of Pins	8
Operating Temperature	-40°C~125°C TJ
Published	2005
JESD-609 Code	e0
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Position	DUAL
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	235
Number of Functions	1
Terminal Pitch	0.5mm
Reach Compliance Code	not_compliant
Time@Peak Reflow Temperature-Max (s)	20
Pin Count	8
Current - Supply (Max)	3.5mA
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	10V
Output Voltage	9.5V
Output Type	Adjustable
Operating Supply Current	120μA
Output Configuration	Positive
Current - Output	100mA
Control Features	Enable
Max Output Voltage	9.8V
Voltage - Output (Min/Fixed)	0.2V
Number of Regulators	1
Min Input Voltage	900mV
Protection Features	Over Current, Over Temperature, Reverse Polarity
Current - Quiescent (Iq)	250μA
Voltage Dropout (Max)	0.285V @ 100mA
PSRR	64dB (120Hz)
Dropout Voltage	150mV
Dropout Voltage1-Nom	0.15V
Min Output Voltage	200mV
Power Supply Rejection Ratio (PSRR)	64dB
Load Regulation-Max(%)	0.5%
Length	3mm
Width	3mm
RoHS Status	Non-RoHS Compliant

LT3020IDD Product Details

LT3020IDD Overview

This battery regulator is contained in a 8-WFDFN Exposed Pad package. There are 8 terminations on the gadget. The IC chip's output type is Adjustable. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C TJ degrees. This regulator's output function is configured to be Positive. Its current output stands at 100mA. IC voltage regulator has a sum of 8 pins. To ensure prompt, sufficient performance, this part features 1 outputs in total. Its dropout voltage is 10 volts. The component's pin number remains 8. Regulator has a 120μA voltage output.
