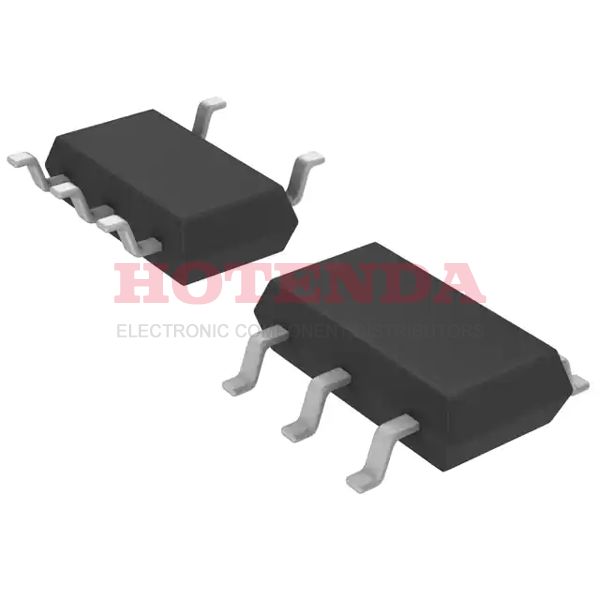

LT1964IS5-BYP#TRMPBF Description
A micropower low noise, low dropout negative regulator is the LT®1964. The device has a 340mV dropout voltage and can deliver 200mA of output current. The LT1964 is a great option for battery-powered applications thanks to its low quiescent current (30 A operating and 3 A shutdown). In dropout, the quiet current is tightly controlled.
Low output noise is one of the LT1964's additional characteristics. Over a bandwidth of 10Hz to 100kHz, output noise can be decreased to 30VRMS by adding an external 0.01F bypass capacitor. The LT1964 can function with modest output capacitors and is stable with values as low as 1 F. It is possible to employ tiny ceramic capacitors instead of adding ESR as is typical with other regulators.
LT1964IS5-BYP#TRMPBF Features
Low Noise: 30μVRMS (10Hz to 100kHz)
Low Quiescent Current: 30μA
Low Dropout Voltage: 340mV
Output Current: 200mA
Fixed Output Voltage: –5V
Adjustable Output from –1.22V to –20V
Positive or Negative Shutdown Logic
3μA Quiescent Current in Shutdown
Stable with 1μF Output Capacitor
Stable with Aluminum, Tantalum, or Ceramic Capacitors
Thermal Limiting
Low Profi le (1mm) ThinSOT™ and (0.75mm) 8-Pin 3mm × 3mm DFN Packages
LT1964IS5-BYP#TRMPBF Applications
Battery-Powered Instruments
Low Noise Regulator for Noise-Sensitive Instrumentation
Negative Complement to LT1761 Family of Positive LDOs
