LT1468CDD-2 Overview

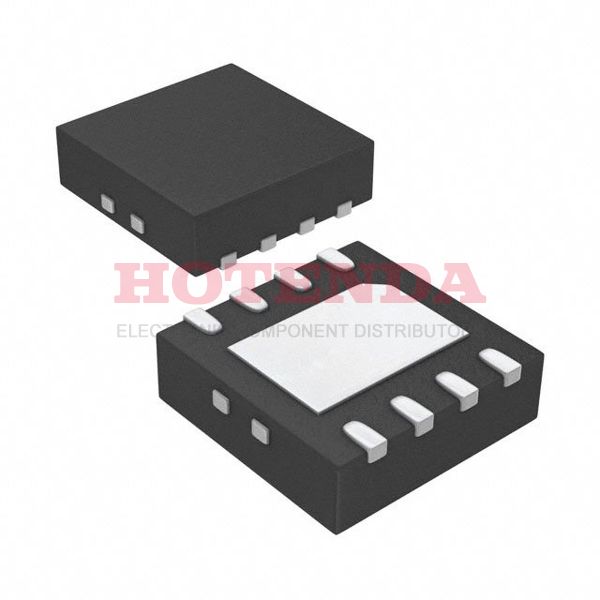

It is packaged in an 8-WFDFN Exposed Pad-case that protects the operational amplifiers from damage. Op amps are General Purpose types of amplifier on the chip. The case in which buffer amplifier is delivered is called a Tube case. In recent months, the number of terminations has approached 8. Buffer amplifier has a total of 8 pins on it. This linear amplifier should be powered by an 5V battery. In order to be more specific, this instrumentation amplifier is one of the types of Operational Amplifier devices. The mounting type that is recommended for this electrical part is Surface Mount. Regarding the operating temperature of this device, instrumentation amplifier performs well at a temperature of 0°C~70°C . On this instrumentation amplifier, there are 1 circuits that are connected together. In order to ensure optimal performance, an 3.9mA supply is recommended for this electrical component. This operational amplifier can conduct a voltage gain of up to 250000 at a minimum.
LT1468CDD-2 Features
8 Pins
supply voltage of 5V
LT1468CDD-2 Applications
There are a lot of Linear Technology/Analog Devices LT1468CDD-2 Instrumentational OP Amps applications.
- High gain DC amplifier
- Power transmission
- Strain gauges
- Micro signal measurement
- High speed sample
- Biopotential
- Measurements of Wheatstone bridge
- Oscilloscopes
- Industrial applications including automation
- Medical imaging
