LT1122BCJ8 Overview

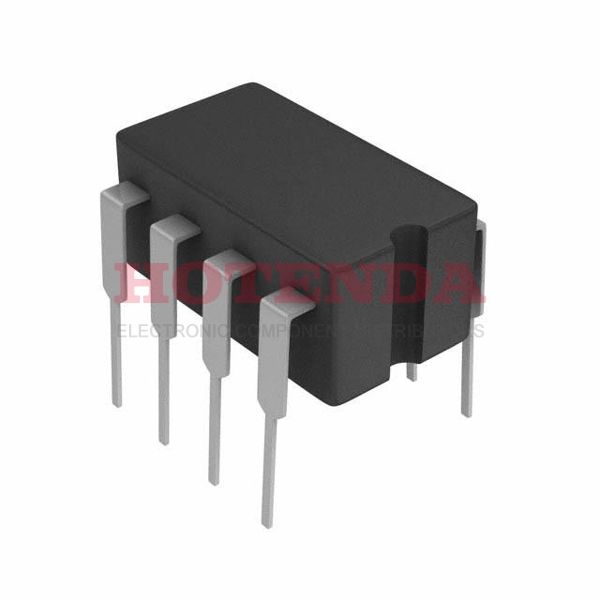

A 8-CDIP (0.300, 7.62mm) case is used to package the op amp. J-FET-type instrumentation amplifiers are used in this application. The case in which buffer amplifier is delivered is called a Tube case. It is estimated that there will be 8 terminations in the next few months. There are a total of 8 pins on this op amp. It is important to remember that this op amp should be operated at a voltage of 15V volts. It should be noted that this op amp is a type of Operational Amplifier device. It is recommended that this electronic component be mounted using the Through Hole mounting type. In terms of operating temperature, this instrumentation amplifier performs well at a temperature of about -40°C~85°C . On this instrumentation amplifier, there are 1 circuits that are connected together. As a recommendation, this electronic component should be used with a power supply that can deliver 7.5mA. There is a minimum voltage gain of 95000 that this buffer op amp is capable of conducting.
LT1122BCJ8 Features
8 Pins
supply voltage of 15V
LT1122BCJ8 Applications
There are a lot of Linear Technology/Analog Devices
LT1122BCJ8 Instrumentational OP Amps applications.
- Addition operation circuits
- Subtraction operation circuits
- single/dual op amp sum and difference circuits
- Integrator circuits
- Differentiator circuits
- Logarithmic operation circuits
- Exponential operation circuits
- Multiplication circuits
- Division circuits
- Precision measurement
