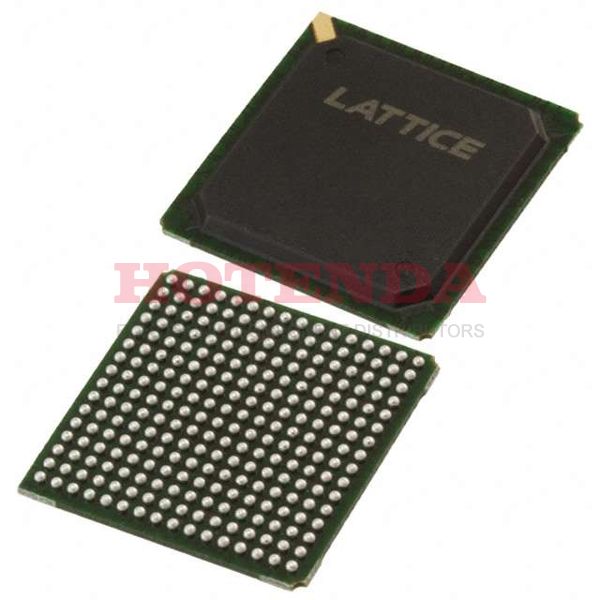

OR3T306BA256-DB

OR3T306BA256-DB

OR3T306BA256-DB

Lattice Semiconductor Corporation

2.32mm mm FPGAs ORCA? 3 Series 203MHz MHz 256-BGA 1.27mm mm 256

SOT-23

OR3T306BA256-DB Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 256-BGA
Number of Pins 256
Operating Temperature0°C~70°C TA
PackagingTray
Published 1993
Series ORCA® 3
Pbfree Code no
Part StatusObsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 256
ECCN Code EAR99
HTS Code8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Voltage - Supply 3V~3.6V
Terminal Position BOTTOM
Terminal FormBALL
Peak Reflow Temperature (Cel) 225
Supply Voltage 3.3V
Terminal Pitch1.27mm
Reach Compliance Code not_compliant
Frequency 203MHz
[email protected] Reflow Temperature-Max (s) 30
Base Part Number OR3T30
Pin Count256
Number of Outputs 217
Qualification StatusNot Qualified
Power Supplies3.3V
Number of I/O 221
RAM Size 3.1kB
Programmable Logic TypeFIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells 1568
Total RAM Bits 25600
Number of Gates48000
Number of Logic Blocks (LABs) 1024
Combinatorial Delay of a CLB-Max 1.32 ns
Number of CLBs 196
Height Seated (Max) 2.32mm
Length 27mm
Width 27mm
RoHS StatusNon-RoHS Compliant
In-Stock:1170 items

OR3T306BA256-DB Product Details

OR3T306BA256-DB Overview


Fpga chips is supplied in the 256-BGA package. In this kind of FPGA, FIELD PROGRAMMABLE GATE ARRAY is used. There are 221 I/Os for better data transfer. A fundamental building block is made up of 1568 logic elements/cells. In order for the device to operate, a supply voltage of 3.3V volts needs to be provided. Field Programmable Gate Arrays family FPGA part. By attaching the Surface Mount connector, you can use this FPGA module with your development board. The supply voltage of the device is 3V~3.6V , at which it runs. The ORCA? 3 series FPGA is a type of FPGA that belongs to the ORCA? 3 family of FPGAs. The operating temperature should be kept at 0°C~70°C TA when operating. During the installation of this device, 217 outputs were incorporated. A model of this FPGA is contained in Tray for the purpose of saving space. In total, it has a total of 256 terminations. Having a RAM bit size of 25600 means that this device will offer you a lot of memory. Related parts can be found by using its base part number OR3T30. The FPGA module's RAM si3.1kBe reaches 3.1kB in order to ensure that the program operates in a normal manner. 256 pins are designed into the device. According to its specifications, this FPGA will be able to work fantastically as long as it is mounted in Surface Mount. The device runs on a 3.3V battery and requires no additional power supply to operate. Its basic building block contains 48000 gates. This device has a pin count of 256 in fpga semiconductor. There are a total of 1024 logic blocks (LABs) that form the basic building blocks of this program. A CLB is a basic module that determines the architecture of a system. Powered by a 203MHz-frequency motor, it delivers high efficiency.

OR3T306BA256-DB Features


221 I/Os
Up to 25600 RAM bits
256 LABs/CLBs
1024 logic blocks (LABs)
Operating from a frequency of 203MHz

OR3T306BA256-DB Applications


There are a lot of Lattice Semiconductor Corporation OR3T306BA256-DB FPGAs applications.

  • Data center hardware accelerators
  • Wireless Communications
  • Defense Applications
  • Artificial intelligence (AI)
  • OpenCL
  • Telecommunication
  • Automotive driver's assistance
  • Embedded Vision
  • Bioinformatics
  • Secure Communication
