Name: RK73Z2BTTD
Brand: KOA Speer Electronics, Inc.
SKU: RK73Z2BTTD
Price: 0.10000 USD
Availability: InStock

new-10%

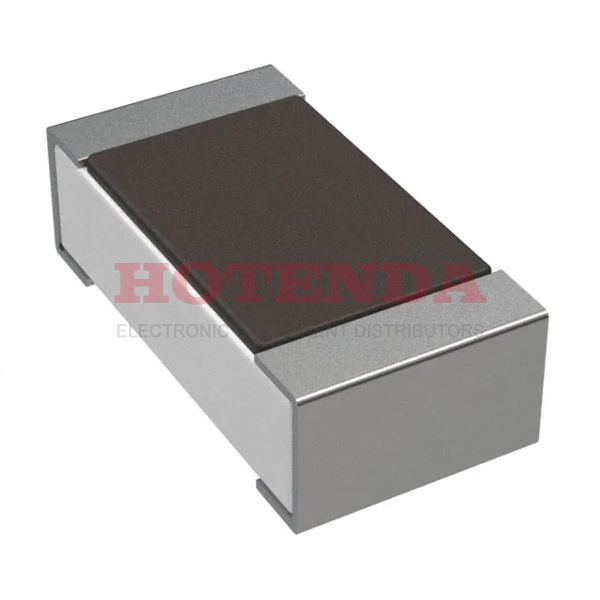

RK73Z2BTTD

Manufacturer part number:RK73Z2BTTD

Manufacturer:KOA Speer Electronics, Inc.

Description:Res Thick Film 1206 0 Ohm Pad SMD Automotive T/R

Case Package:SOT-23

Datasheet:RK73Z2BTTD Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mount	Surface Mount
Package / Case	1206 (3216 Metric)
Supplier Device Package	1206
Operating Temperature	-55°C~155°C
Packaging	Tape & Reel (TR)
Published	2009
Series	RK73Z
Size / Dimension	0.126Lx0.063W 3.20mmx1.60mm
Tolerance	Jumper
Feature	Automotive AEC-Q200, Moisture Resistant
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	SMD/SMT
Temperature Coefficient	400 ppm/°C
Resistance	0Ohms
Max Operating Temperature	155°C
Min Operating Temperature	-55°C
Composition	Metal Element
Power Rating	250mW
Depth	1.6mm
Military Standard	Not
Case Code (Metric)	3216
Case Code (Imperial)	1206
Height	600μm
Height Seated (Max)	0.028 0.70mm
Length	3.2mm
REACH SVHC	Unknown
RoHS Status	ROHS3 Compliant
Ratings	AEC-Q200

RK73Z2BTTD Product Details

KOA Speer Chip Resistor - Surface Mount RK73Z2BTTD is a thick film resistor designed for use in automotive applications. It is a 1206 size surface mount device (SMD) with a 0 ohm resistance value. It is a pad-type resistor with a high temperature rating of 175°C.

Features

• 1206 size surface mount device (SMD)
• 0 ohm resistance value
• High temperature rating of 175°C
• Pad-type resistor
• Automotive grade
• RoHS compliant

Application

The KOA Speer Chip Resistor - Surface Mount RK73Z2BTTD is designed for use in automotive applications. It is suitable for use in a variety of automotive electronics, including engine control units, powertrain control modules, and body control modules. It is also suitable for use in other high temperature applications.
