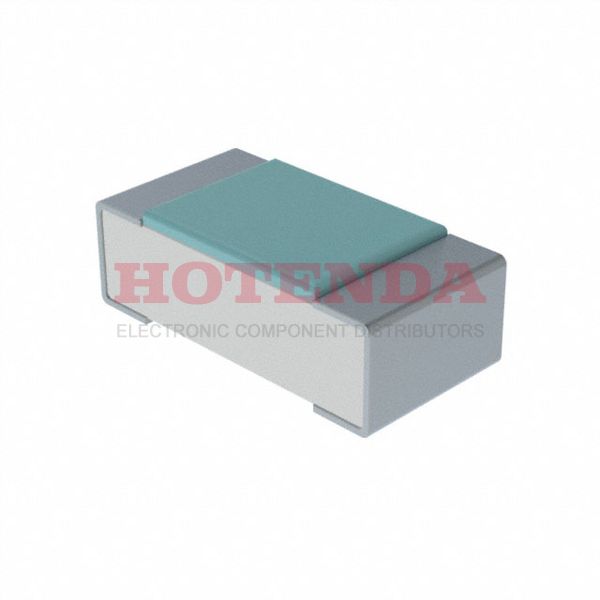

Res Thick Film 0603 20K Ohm 1% 0.1W(1/10W) +/-100ppm/C Pad SMD Automotive T/R
SOT-23
RK73H1JTTD2002F Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
8 Weeks
Mount
Surface Mount
Package / Case
0603 (1608 Metric)
Number of Pins
2
Supplier Device Package
0603
Operating Temperature
-55°C~155°C
Packaging
Tape & Reel (TR)
Published
2013
Series
RK73H
Size / Dimension
0.063Lx0.031W 1.60mmx0.80mm
Tolerance
±1%
Feature
Automotive AEC-Q200, Moisture Resistant
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Number of Terminations
2
Termination
SMD/SMT
Temperature Coefficient
±100ppm/°C
Resistance
20kOhms
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Composition
Thick Film
Power (Watts)
0.1W 1/10W
Voltage - Rated
75V
Power Rating
100mW
Voltage - Rated DC
50V
Depth
800μm
Military Standard
Not
Case Code (Metric)
1608
Case Code (Imperial)
0603
Height
500μm
Height Seated (Max)
0.022 0.55mm
Length
1.6mm
Width
800μm
REACH SVHC
Unknown
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
Ratings
AEC-Q200
In-Stock:61302 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.022979
$0.022979
500
$0.016896
$8.448
1000
$0.014080
$14.08
2000
$0.012917
$25.834
5000
$0.012072
$60.36
10000
$0.011230
$112.3
15000
$0.010861
$162.915
50000
$0.010679
$533.95
RK73H1JTTD2002F Product Details
Description:
The KOA Speer Chip Resistor - Surface Mount RK73H1JTTD2002F is a thick film resistor with a 0603 size and 20K ohm resistance. It has a tolerance of 1% and a power rating of 0.1W (1/10W). It also has a temperature coefficient of +/-100ppm/C and is designed for surface mount applications. This resistor is automotive grade and is supplied in a tape and reel package.
Features:
• 0603 size • 20K ohm resistance • 1% tolerance • 0.1W (1/10W) power rating • +/-100ppm/C temperature coefficient • Surface mount design • Automotive grade • Tape and reel package
Applications:
The KOA Speer Chip Resistor - Surface Mount RK73H1JTTD2002F is suitable for use in automotive applications such as engine control, powertrain control, and body control. It can also be used in other applications such as consumer electronics, industrial control, and medical devices.
