Name: C330C224K5R5TA7301
Brand: KEMET Corporation
SKU: C330C224K5R5TA7301
Price: 0.17000 USD
Availability: InStock

new-10%

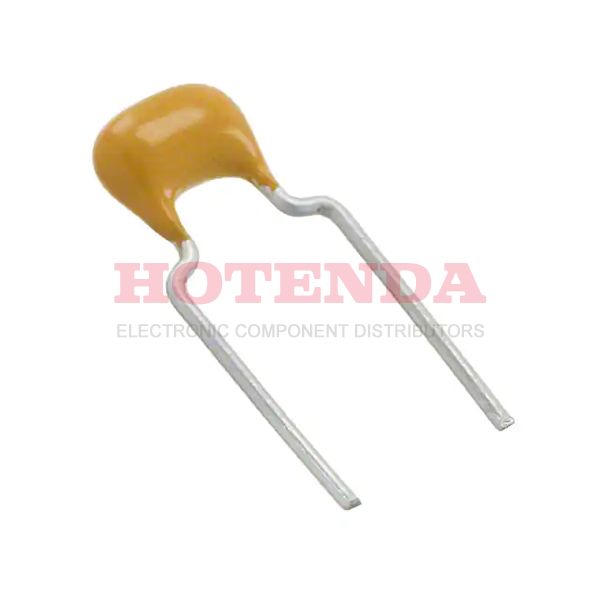

C330C224K5R5TA7301

Manufacturer part number:C330C224K5R5TA7301

Manufacturer:KEMET Corporation

Description:GoldMax 300 Comm X7R 0.22 uF 50V Ceramic Capacitor 10% X7R 0.280 L x 0.160 W (7.11mm x 4.07mm) -55°C ~ 125°C Through Hole Radial

Case Package:SOT-23

Datasheet:C330C224K5R5TA7301 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Mounting Feature	THROUGH HOLE MOUNT
Dielectric Material	CERAMIC
Number of Terminals	2
ECCN (US)	EAR99
HTS	8532.24.00.60
Capacitance Value	0.22uF
Microwave Application	No
Mounting	Through Hole
Terminal Pitch (mm)	5.08
Case Style	Dipped
Dissipation Factor (%)	2.5
Size (mm)	7.11 X 4.07 X 9.14
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	125
Lead Diameter (mm)	0.51
Product Depth (mm)	4.07(Max)
Seated Plane Height (mm)	9.14(Max)
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Manufacturer	KEMET
Brand	KEMET
Tradename	GoldMax
RoHS	Details
Class	Class 2
Voltage Rating (DC)	50 V
Package	Tape & Reel (TR)
Base Product Number	C330C
Mfr	KEMET
Product Status	Active
Height - Seated (Max)	0.360 (9.14mm)
Package Shape	RECTANGULAR PACKAGE
Packaging	Tape and Reel
Series	GoldMax 300 Comm X7R
Operating Temperature	-55°C ~ 125°C
Size / Dimension	0.280 L x 0.160 W (7.11mm x 4.07mm)
Tolerance	10%
JESD-609 Code	e3
Pbfree Code	Yes
Part Status	Active
Termination	Radial
ECCN Code	EAR99
Temperature Coefficient	X7R
Type	Goldmax X7R Dielectric Commercial Grade MLCCs
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Max Operating Temperature	125 °C
Min Operating Temperature	-55 °C
Applications	Bypass, Decoupling
Voltage - Rated	50V
HTS Code	8532.24.00.60
Capacitance	0.22 uF
Subcategory	Capacitors
Packing Method	TR, 12 INCH
Terminal Pitch	5.08 mm
Depth	3.81 mm
Reach Compliance Code	compliant
Termination Style	Radial
Lead Pitch	5.08 mm
Capacitor Type	CERAMIC CAPACITOR
Dielectric	X7R
Failure Rate	-
Lead Spacing	5.08 mm
Temperature Characteristics Code	X7R
Multilayer	Yes
Rated (DC) Voltage (URdc)	50 V
Lead Diameter	0.51 mm
Voltage	50VDC
Lead Style	Outside Bend
Dissipation Factor	2.5 %
Positive Tolerance	10%
Negative Tolerance	10%
Product Type	Ceramic Capacitors
Operating Temperature Range	- 55 C to + 125 C
Product	General Type MLCCs
Features	-
Voltage Rating	50 VDC
Product Category	Multilayer Ceramic Capacitors MLCC - Leaded
Product Length (mm)	7.11(Max)
Width	9.14 mm
Height	4.07 mm
Length	7.11 mm
Diameter	-
Thickness (Max)	-
Product Height (mm)	9.14(Max)
RoHS Status	RoHS Compliant
Ratings	-

C330C224K5R5TA7301 Product Details

C330C224K5R5TA7301 Overview

Using this device, the program has a size/dimension of 0.280 L x 0.160 W (7.11mm x 4.07mm).The part in question has a tolerance of 10%.This device's capacitance value is 0.22uF because charges on the two conductors are equal to their potential differences (i.e., voltages).Stable operation requires a temperature higher than -55 °C.Ceramic capacitor exhibCeramic capacitors a posCeramic capacitorive tolerance of 10%.This coefficient equals X7R indicates that a substance's electrical resistance changes with temperature per degree change.Ceramic capacitor is the distance between adjacent threads that determines the lead pCeramic capacitorch of a capacCeramic capacitoror.

C330C224K5R5TA7301 Features

a size/dimension of 0.280 L x 0.160 W (7.11mm x 4.07mm)
a tolerance of 10%
a capacitance value of 0.22uF
a tolerance of 10%
with X7R being the highest temperature coefficient
