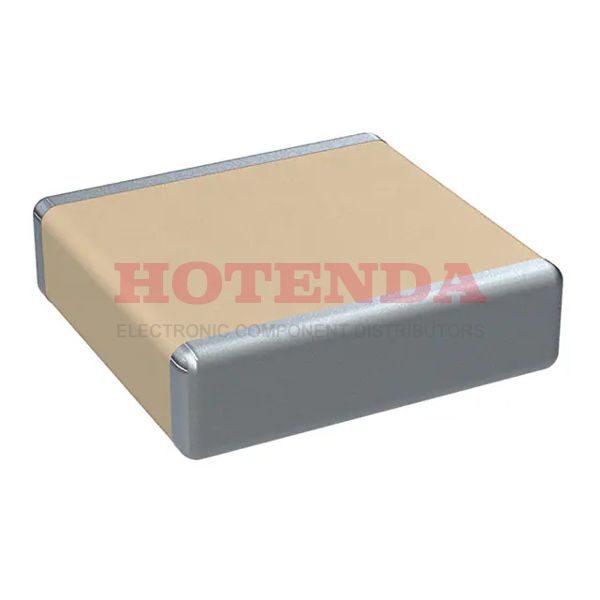

Name: C2225X103KGRAC7800
Brand: KEMET Corporation
SKU: C2225X103KGRAC7800
Price: 6.33000 USD
Availability: InStock

new-10%

C2225X103KGRAC7800

Manufacturer part number:C2225X103KGRAC7800

Manufacturer:KEMET Corporation

Description:SMD Comm X7R HV Flex 10000 pF 2000V (2kV) Ceramic Capacitor 10% X7R 0.232 L x 0.252 W (5.90mm x 6.40mm) -55°C ~ 125°C Surface Mount, MLCC 2225

Case Package:SOT-23

Datasheet:C2225X103KGRAC7800 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Package / Case	2225
Mounting Type	Surface Mount, MLCC
Number of Terminals	2
ECCN (US)	EAR99
Capacitance Value	0.01uF
Equivalent Series Resistance Type	Low
Microwave Application	No
Mounting	Surface Mount
Case Style	Ceramic Chip
Dissipation Factor (%)	2.5
Size (mm)	5.9 X 6.4 X 1.6
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	125
Product Depth (mm)	6.4
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	C2225X
Mfr	KEMET
Product Status	Active
Height - Seated (Max)	-
Packaging	Tape and Reel
Operating Temperature	-55°C ~ 125°C
Series	SMD Comm X7R HV Flex
Size / Dimension	0.232 L x 0.252 W (5.90mm x 6.40mm)
Tolerance	10%
Part Status	Active
Temperature Coefficient	X7R
Applications	Boardflex Sensitive
Voltage - Rated	2000V (2kV)
Capacitance	10000 pF
Construction	Flat
Termination Style	Pad
Dielectric	X7R
Failure Rate	-
Lead Spacing	-
Voltage	2000VDC
Lead Style	-
Features	Low ESL, Soft Termination, High Voltage
Product Length (mm)	5.9
Thickness (Max)	0.071 (1.80mm)
Product Height (mm)	1.6
RoHS Status	RoHS Compliant
Ratings	-

C2225X103KGRAC7800 Product Details

C2225X103KGRAC7800 Overview

The size/dimension of the program on this device is 0.232 L x 0.252 W (5.90mm x 6.40mm).The capacitance value of this device is 0.01uF, which is the ratio of the electric charge on each conductor to the voltage difference between them.In general, the temperature coefficient of resistance is defined as the change in electrical resistance of a substance per degree of temperature change.
