Name: C1812C101JHGAC7800
Brand: KEMET Corporation
SKU: C1812C101JHGAC7800
Price: 2.07000 USD
Availability: InStock

new-10%

C1812C101JHGAC7800

Manufacturer part number:C1812C101JHGAC7800

Manufacturer:KEMET Corporation

Description:SMD Comm C0G HV 100 pF 3000V (3kV) Ceramic Capacitor 5% C0G, NP0 0.177 L x 0.126 W (4.50mm x 3.20mm) -55°C ~ 125°C Surface Mount, MLCC 1812

Case Package:SOT-23

Datasheet:C1812C101JHGAC7800 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Package / Case	1812
Mounting Type	Surface Mount, MLCC
Surface Mount	YES
Terminal Shape	WRAPAROUND
Mounting Feature	SURFACE MOUNT
Dielectric Material	CERAMIC
Number of Terminals	2
ECCN (US)	EAR99
Capacitance Value	100pF
Equivalent Series Resistance Type	Extreme Low
Microwave Application	Yes
Mounting	Surface Mount
Case Style	Ceramic Chip
Dissipation Factor (%)	0.1
Size (mm)	4.5 X 3.2 X 1.6
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	125
Product Depth (mm)	3.2
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	C1812C
Mfr	KEMET
Product Status	Active
Height - Seated (Max)	-
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Class	Class 1
Package Shape	RECTANGULAR PACKAGE
Manufacturer	KEMET Corporation
Packaging	Tape and Reel
Operating Temperature	-55°C ~ 125°C
Series	SMD Comm C0G HV
Size / Dimension	0.177 L x 0.126 W (4.50mm x 3.20mm)
Tolerance	5%
JESD-609 Code	e3
Pbfree Code	Yes
Part Status	Active
Termination	Standard
ECCN Code	EAR99
Temperature Coefficient	C0G, NP0
Type	High Voltage C0G Dielectric Commercial MLCCs
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Applications	General Purpose
Voltage - Rated	3000V (3kV)
HTS Code	8532.24.0020
Capacitance	100 pF
Subcategory	Capacitors
Packing Method	TR, PLASTIC, 7 INCH
Construction	Flat
Reach Compliance Code	compliant
Termination Style	Pad
Capacitor Type	CERAMIC CAPACITOR
Dielectric	C0G
Failure Rate	-
Lead Spacing	-
Temperature Characteristics Code	C0G
Multilayer	Yes
Rated (DC) Voltage (URdc)	3000 V
Size Code	1812
Voltage	3000VDC
Lead Style	-
Positive Tolerance	5%
Negative Tolerance	5%
Product Type	Ceramic Capacitors
Product	General Type MLCCs
Features	Low ESL, High Voltage
Product Length (mm)	4.5
Width	3.2 mm
Length	4.5 mm
Height	1.6 mm
Thickness (Max)	0.071 (1.80mm)
Product Height (mm)	1.6
RoHS Status	RoHS Compliant
Ratings	-

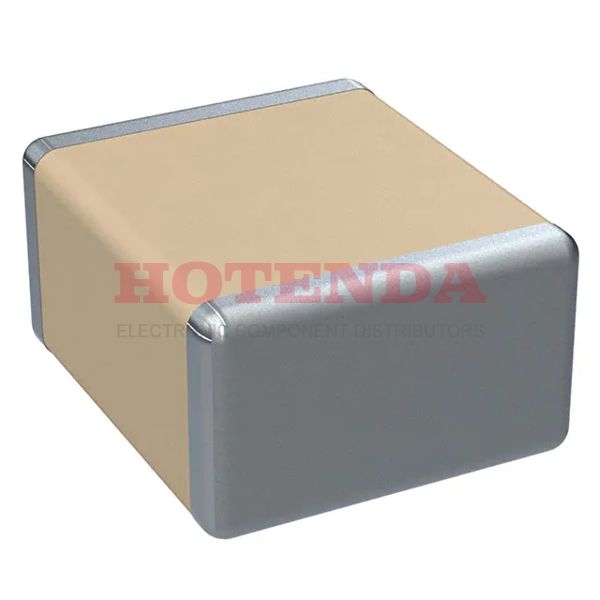

C1812C101JHGAC7800 Product Details

C1812C101JHGAC7800 Overview

A 0.177 L x 0.126 W (4.50mm x 3.20mm) size/dimension program is available for this device.Negative tolerance of 5% is characteristic of this part.Using this device, the capacitance value is 100pF, which is the ratio between the electric charge on each conductor and the potential difference (i.e., voltage) between them.Ceramic capacitor possesses a tolerance of 5% when Ceramic capacitor comes to posCeramic capacitorive tolerances.Temperature coefficient of resistance consists of the change in electrical resistance of a substance with respect to each degree change in temperature, and it is C0G, NP0.

C1812C101JHGAC7800 Features

a size/dimension of 0.177 L x 0.126 W (4.50mm x 3.20mm)
a tolerance of 5%
a capacitance value of 100pF
a tolerance of 5%
with C0G, NP0 being the highest temperature coefficient
