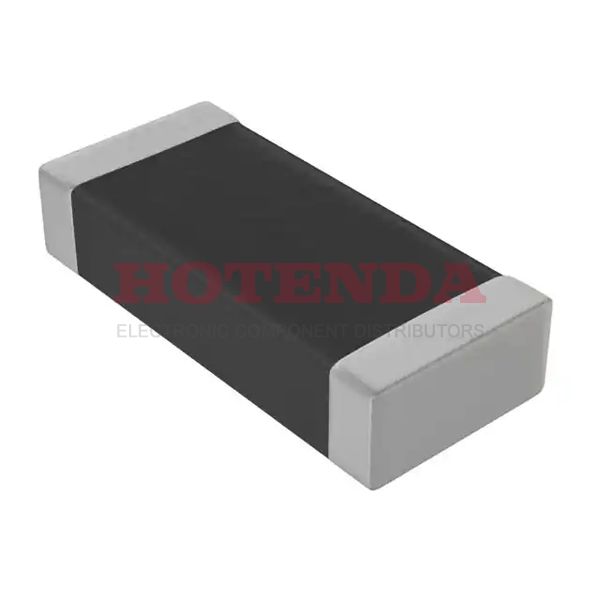

Name: C1808X102KHRAC7800
Brand: KEMET Corporation
SKU: C1808X102KHRAC7800
Price: 1.53000 USD
Availability: InStock

new-10%

C1808X102KHRAC7800

Manufacturer part number:C1808X102KHRAC7800

Manufacturer:KEMET Corporation

Description:SMD Comm X7R HV Flex 1000 pF 3000V (3kV) Ceramic Capacitor 10% X7R 0.185 L x 0.079 W (4.70mm x 2.00mm) -55°C ~ 125°C Surface Mount, MLCC 1808

Case Package:SOT-23

Datasheet:C1808X102KHRAC7800 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Package / Case	1808
Mounting Type	Surface Mount, MLCC
Number of Terminals	2
ECCN (US)	EAR99
Capacitance Value	0.001uF
Equivalent Series Resistance Type	Low
Microwave Application	Yes
Mounting	Surface Mount
Case Style	Ceramic Chip
Dissipation Factor (%)	2.5
Size (mm)	4.7 X 2 X 2
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	125
Product Depth (mm)	2
Length Tolerance (mm)	±0.5
Depth Tolerance (mm)	±0.2
Height Tolerance (mm)	±0.15
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	C1808X
Mfr	KEMET
Product Status	Active
Height - Seated (Max)	-
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Class	Class 2
Packaging	Tape and Reel
Operating Temperature	-55°C ~ 125°C
Series	SMD Comm X7R HV Flex
Size / Dimension	0.185 L x 0.079 W (4.70mm x 2.00mm)
Tolerance	10%
Part Status	Active
Termination	Flexible (Soft)
Temperature Coefficient	X7R
Type	Surface Mount Multilayer Ceramic Chip Capacitor
Applications	Boardflex Sensitive
Voltage - Rated	3000V (3kV)
Capacitance	1000 pF
Subcategory	Capacitors
Construction	Flat
Termination Style	Pad
Dielectric	X7R
Failure Rate	-
Lead Spacing	-
Voltage	3000VDC
Lead Style	-
Product Type	Ceramic Capacitors
Special Feature	Low ESL\|Non Polar Device
Product	General Type MLCCs
Features	Low ESL, Soft Termination, High Voltage
Product Length (mm)	4.7
Width	2 mm
Length	4.7 mm
Thickness (Max)	0.085 (2.15mm)
Product Height (mm)	2
RoHS Status	RoHS Compliant
Ratings	-

C1808X102KHRAC7800 Product Details

C1808X102KHRAC7800 Overview

A program's size/dimension is 0.185 L x 0.079 W (4.70mm x 2.00mm) for this device.An electrical device's capacitance value is determined by the ratio of the electric charge on each conductor to the potential difference between them, and this device's capacitance value is 0.001uF.Its coefficient is X7R and determines the change in resistance per degree of temperature for a substance.Capacitors with a depth tolerance of 1 are referred to as ±0.2.
