Name: C1808C153KDRAC7800
Brand: KEMET Corporation
SKU: C1808C153KDRAC7800
Price: 1.65000 USD
Availability: InStock

new-10%

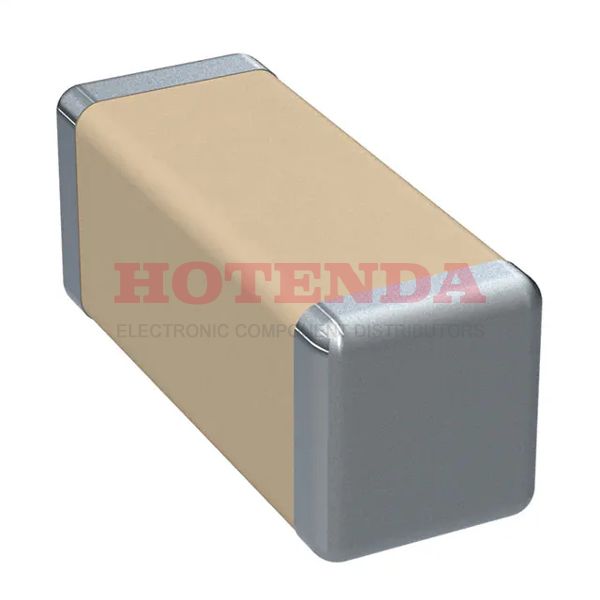

C1808C153KDRAC7800

Manufacturer part number:C1808C153KDRAC7800

Manufacturer:KEMET Corporation

Description:SMD Comm X7R HV 0.015 µF 1000V (1kV) Ceramic Capacitor 10% X7R 0.185 L x 0.079 W (4.70mm x 2.00mm) -55°C ~ 125°C Surface Mount, MLCC 1808

Case Package:SOT-23

Datasheet:C1808C153KDRAC7800 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Package / Case	1808
Mounting Type	Surface Mount, MLCC
Number of Terminals	2
ECCN (US)	EAR99
Capacitance Value	0.015uF
Equivalent Series Resistance Type	Low
Microwave Application	Yes
Mounting	Surface Mount
Case Style	Ceramic Chip
Dissipation Factor (%)	2.5
Size (mm)	4.7 X 2 X 2
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	125
Product Depth (mm)	2
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	C1808C
Mfr	KEMET
Product Status	Active
Height - Seated (Max)	-
Packaging	Tape and Reel
Operating Temperature	-55°C ~ 125°C
Series	SMD Comm X7R HV
Size / Dimension	0.185 L x 0.079 W (4.70mm x 2.00mm)
Tolerance	10%
Part Status	Active
Temperature Coefficient	X7R
Applications	General Purpose
Voltage - Rated	1000V (1kV)
Capacitance	0.015 µF
Construction	Flat
Termination Style	Pad
Dielectric	X7R
Failure Rate	-
Lead Spacing	-
Voltage	1000VDC
Lead Style	-
Features	Low ESL, High Voltage
Product Length (mm)	4.7
Thickness (Max)	0.085 (2.15mm)
Product Height (mm)	2
RoHS Status	RoHS Compliant
Ratings	-

C1808C153KDRAC7800 Product Details

C1808C153KDRAC7800 Overview

Consequently, the program has size/dimension 0.185 L x 0.079 W (4.70mm x 2.00mm).Considering each conductor's capacitance as a ratio of electrical charge to potential difference (i.e., voltage), this device has 0.015uF.This coefficient is determined by the change in electrical resistance of a substance as a function of temperature; in general, its coefficient is X7R.
