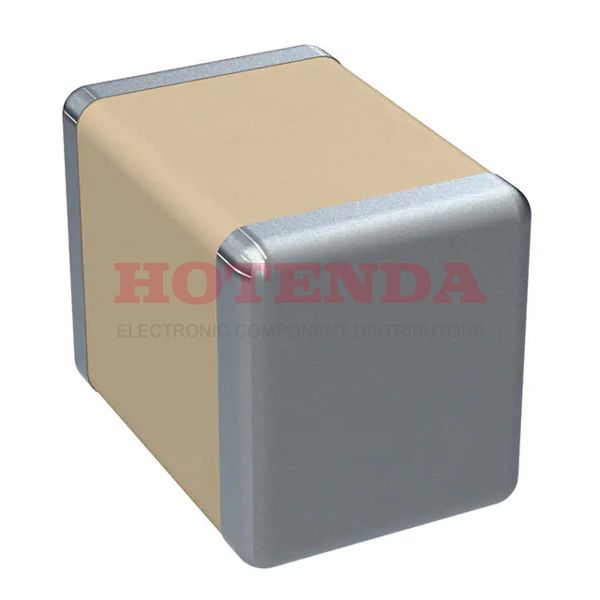

Name: C1210C105K3RAC7800
Brand: KEMET Corporation
SKU: C1210C105K3RAC7800
Price: 0.41000 USD
Availability: InStock

new-10%

C1210C105K3RAC7800

Manufacturer part number:C1210C105K3RAC7800

Manufacturer:KEMET Corporation

Description:SMD Comm X7R 1000000(pF) 25V Ceramic Capacitor 10% X7R 0.126 L x 0.098 W (3.20mm x 2.50mm) -55°C ~ 125°C Surface Mount, MLCC 1210

Case Package:SOT-23

Datasheet:C1210C105K3RAC7800 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Package / Case	1210
Mounting Type	Surface Mount, MLCC
Surface Mount	YES
Terminal Shape	WRAPAROUND
Mounting Feature	SURFACE MOUNT
Dielectric Material	CERAMIC
Number of Terminals	2
Mounting Style	Surface Mount
ECCN (US)	EAR99
HTS	8532.24.00.20
Capacitance Value	1uF
Microwave Application	No
Mounting	Surface Mount
Case Style	Ceramic Chip
Dissipation Factor (%)	3.5
Size (mm)	3.2 X 2.5 X 1.55
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	125
Product Depth (mm)	2.5
Wire Form	Not Required
Operating Temp Range	-55C to 125C
Product Diameter (mm)	Not Required(mm)
Temp Coeff (Dielectric)	X7R
Lead Diameter (nom)	Not Required(mm)
Tolerance (+ or -)	10%
Rad Hardened	No
Seated Plane Height	Not Required(mm)
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	C1210C
Mfr	KEMET
Product Status	Active
Height - Seated (Max)	-
Package Shape	RECTANGULAR PACKAGE
Manufacturer	KEMET Corporation
Packaging	Tape and Reel
Operating Temperature	-55°C ~ 125°C
Series	SMD Comm X7R
Size / Dimension	0.126 L x 0.098 W (3.20mm x 2.50mm)
Tolerance	10%
JESD-609 Code	e3
Pbfree Code	Yes
Part Status	Active
ECCN Code	EAR99
Temperature Coefficient	X7R
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Applications	Bypass, Decoupling
Voltage - Rated	25V
HTS Code	8532.24.00.20
Capacitance	1000000(pF)
Packing Method	TR, PLASTIC, 7 INCH
Construction	Flat
Reach Compliance Code	compliant
Termination Style	Pad
Capacitor Type	CERAMIC CAPACITOR
Dielectric	X7R
Failure Rate	Not Required
Lead Spacing	-
Temperature Characteristics Code	X7R
Multilayer	Yes
Rated (DC) Voltage (URdc)	25 V
Size Code	1210
Voltage	25VDC
Lead Style	-
Positive Tolerance	10%
Negative Tolerance	10%
Features	-
Product Length (mm)	3.2
Width	2.5 mm
Height	1.55 mm
Length	3.2 mm
Thickness (Max)	0.067 (1.70mm)
Product Height (mm)	1.55
RoHS Status	RoHS Compliant
Ratings	-

C1210C105K3RAC7800 Product Details

C1210C105K3RAC7800 Overview

Ceramic capacitor is 0.126 L x 0.098 W (3.20mm x 2.50mm) in size/dimension for this device.Considering negative tolerance, this part has 10% tolerance.There is a voltage difference between each conductor and the electric charge on each conductor, and this device has a capacitance value of 1uF.There is no positive tolerance on this part.Generally, the temperature coefficient of resistance is defined as the change in electrical resistance of a substance with respect to temperature changes, and it is equal to X7R.

C1210C105K3RAC7800 Features

a size/dimension of 0.126 L x 0.098 W (3.20mm x 2.50mm)
a tolerance of 10%
a capacitance value of 1uF
a tolerance of 10%
with X7R being the highest temperature coefficient
