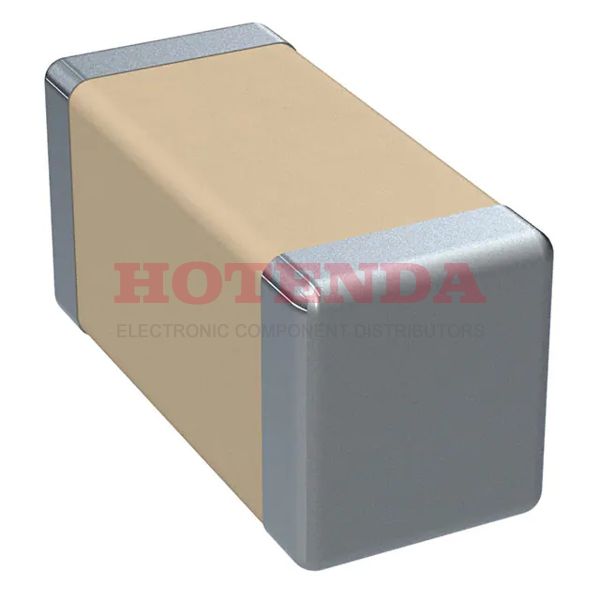

Name: C1206C475J8NAC7800
Brand: KEMET Corporation
SKU: C1206C475J8NAC7800
Price: 1.21000 USD
Availability: InStock

new-10%

C1206C475J8NAC7800

Manufacturer part number:C1206C475J8NAC7800

Manufacturer:KEMET Corporation

Description:SMD Comm X8L HT150C 4.7 µF 10V Ceramic Capacitor 5% X8L 0.126 L x 0.063 W (3.20mm x 1.60mm) -55°C ~ 150°C Surface Mount, MLCC 1206

Case Package:SOT-23

Datasheet:C1206C475J8NAC7800 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Package / Case	1206
Mounting Type	Surface Mount, MLCC
Number of Terminals	2
ECCN (US)	EAR99
Capacitance Value	4.7uF
Microwave Application	No
Mounting	Surface Mount
Case Style	Ceramic Chip
Dissipation Factor (%)	3.5
Size (mm)	3.2 X 1.6 X 1.6
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	150
Product Depth (mm)	1.6
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	C1206C
Mfr	KEMET
Product Status	Active
Height - Seated (Max)	-
Packaging	Tape and Reel
Operating Temperature	-55°C ~ 150°C
Series	SMD Comm X8L HT150C
Size / Dimension	0.126 L x 0.063 W (3.20mm x 1.60mm)
Tolerance	5%
Part Status	Active
Temperature Coefficient	X8L
Applications	General Purpose
Voltage - Rated	10V
Capacitance	4.7 µF
Construction	Flat
Termination Style	Pad
Dielectric	X8L
Failure Rate	-
Lead Spacing	-
Voltage	10VDC
Lead Style	-
Features	High Temperature
Product Length (mm)	3.2
Thickness (Max)	0.071 (1.80mm)
Product Height (mm)	1.6
RoHS Status	RoHS Compliant
Ratings	-

C1206C475J8NAC7800 Product Details

C1206C475J8NAC7800 Overview

Consequently, the program has size/dimension 0.126 L x 0.063 W (3.20mm x 1.60mm).Considering each conductor's capacitance as a ratio of electrical charge to potential difference (i.e., voltage), this device has 4.7uF.This coefficient is determined by the change in electrical resistance of a substance as a function of temperature; in general, its coefficient is X8L.
