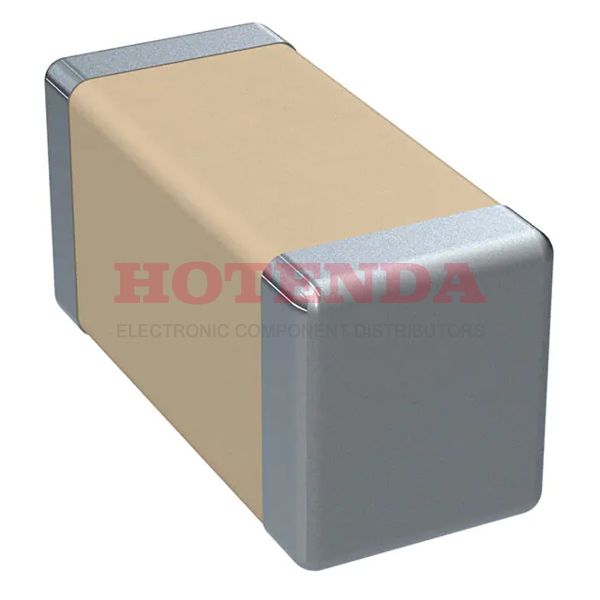

C1206C226M9RAC7800

new-10%

Manufacturer part number:C1206C226M9RAC7800

Manufacturer:KEMET Corporation

Description:SMD Comm X7R 22 µF 6.3V Ceramic Capacitor 20% X7R 0.126 L x 0.063 W (3.20mm x 1.60mm) -55°C ~ 125°C Surface Mount, MLCC 1206

Case Package:SOT-23

Datasheet:C1206C226M9RAC7800 Datasheet

RoHs Status:non-compliant

Name	Value
Type	Parameter
Package / Case	1206
Mounting Type	Surface Mount, MLCC
Number of Terminals	2
ECCN (US)	EAR99
HTS	8532.24.00.20
Capacitance Value	22uF
Microwave Application	No
Mounting	Surface Mount
Case Style	Ceramic Chip
Dissipation Factor (%)	10
Size (mm)	3.2 X 1.6 X 1.6
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	125
Product Depth (mm)	1.6
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	C1206C
Mfr	KEMET
Product Status	Active
Height - Seated (Max)	-
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Class	Class 2
Packaging	Tape and Reel
Operating Temperature	-55°C ~ 125°C
Series	SMD Comm X7R
Size / Dimension	0.126 L x 0.063 W (3.20mm x 1.60mm)
Tolerance	20%
Part Status	Active
Termination	Standard
Temperature Coefficient	X7R
Type	X7R Dielectric Commercial Grade MLCCs
Applications	Bypass, Decoupling
Voltage - Rated	6.3V
Capacitance	22 µF
Subcategory	Capacitors
Construction	Flat
Termination Style	Pad
Dielectric	X7R
Failure Rate	-
Lead Spacing	-
Voltage	6.3VDC
Lead Style	-
Product Type	Ceramic Capacitors
Product	General Type MLCCs
Features	-
Product Length (mm)	3.2
Width	1.6 mm
Height	0.78 mm
Length	3.2 mm
Thickness (Max)	0.071 (1.80mm)
Product Height (mm)	1.6
RoHS Status	RoHS Compliant
Ratings	-
