Name: C1206C121J5GAC7800
Brand: KEMET Corporation
SKU: C1206C121J5GAC7800
Price: 0.36000 USD
Availability: InStock

new-10%

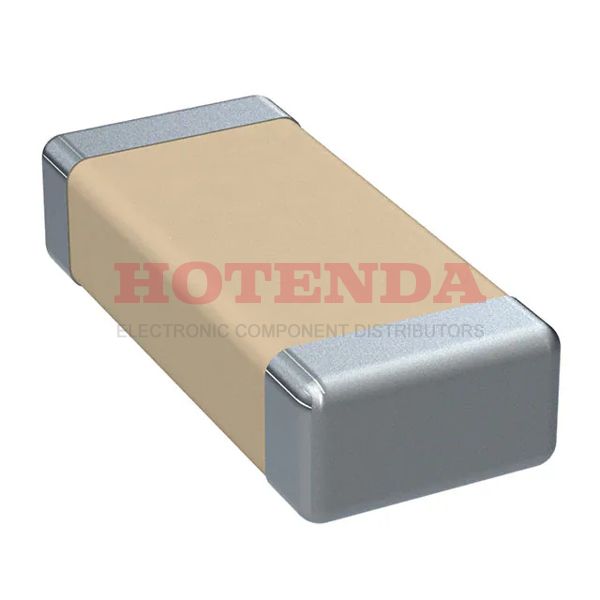

C1206C121J5GAC7800

Manufacturer part number:C1206C121J5GAC7800

Manufacturer:KEMET Corporation

Description:SMD Comm C0G 120(pF) 50V Ceramic Capacitor 5% C0G, NP0 0.126 L x 0.063 W (3.20mm x 1.60mm) -55°C ~ 125°C Surface Mount, MLCC 1206

Case Package:SOT-23

Datasheet:C1206C121J5GAC7800 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Package / Case	1206
Mounting Type	Surface Mount, MLCC
Surface Mount	YES
Terminal Shape	WRAPAROUND
Mounting Feature	SURFACE MOUNT
Dielectric Material	CERAMIC
Number of Terminals	2
Mounting Style	Surface Mount
ECCN (US)	EAR99
HTS	8532.24.00.20
Capacitance Value	120pF
Equivalent Series Resistance Type	Extreme Low
Microwave Application	No
Mounting	Surface Mount
Case Style	Ceramic Chip
Dissipation Factor (%)	0.1
Size (mm)	3.2 X 1.6 X 0.78
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	125
Product Depth (mm)	1.6
Wire Form	Not Required
Operating Temp Range	-55C to 125C
Product Diameter (mm)	Not Required(mm)
Temp Coeff (Dielectric)	C0G
Lead Diameter (nom)	Not Required(mm)
Tolerance (+ or -)	5%
Rad Hardened	No
Seated Plane Height	Not Required(mm)
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Manufacturer	KEMET
Brand	KEMET
RoHS	Details
Class	Class 1
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	C1206C
Mfr	KEMET
Product Status	Active
Height - Seated (Max)	-
Package Shape	RECTANGULAR PACKAGE
Packaging	Tape and Reel
Series	SMD Comm C0G
Operating Temperature	-55°C ~ 125°C
Size / Dimension	0.126 L x 0.063 W (3.20mm x 1.60mm)
Tolerance	5%
JESD-609 Code	e3
Pbfree Code	Yes
Part Status	Active
Termination	Standard
ECCN Code	EAR99
Temperature Coefficient	C0G, NP0
Type	C0G Dielectric Commercial Grade MLCCs
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Applications	General Purpose
Voltage - Rated	50V
HTS Code	8532.24.00.20
Capacitance	120(pF)
Subcategory	Capacitors
Packing Method	TR, PLASTIC, 7 INCH
Construction	Flat
Reach Compliance Code	compliant
Termination Style	Pad
Capacitor Type	CERAMIC CAPACITOR
Dielectric	C0G
Failure Rate	Not Required
Lead Spacing	-
Temperature Characteristics Code	C0G
Multilayer	Yes
Rated (DC) Voltage (URdc)	50 V
Size Code	1206
Voltage	50VDC
Lead Style	-
Positive Tolerance	5%
Negative Tolerance	5%
Product Type	Ceramic Capacitors
Product	General Type MLCCs
Features	Low ESL
Product Category	Multilayer Ceramic Capacitors MLCC - SMD/SMT
Product Length (mm)	3.2
Width	1.6 mm
Height	0.78 mm
Length	3.2 mm
Thickness (Max)	0.035 (0.88mm)
Product Height (mm)	0.78
RoHS Status	RoHS Compliant
Ratings	-

C1206C121J5GAC7800 Product Details

C1206C121J5GAC7800 Overview

In the case of this device, the size/dimension of the program is 0.126 L x 0.063 W (3.20mm x 1.60mm).Speaking of negative tolerance, this part is characterised to have 5% tolerance.Capacitance value is expressed as the ratio of the electric charge on each conductor to the potential difference (i.e., voltage) between them, and this device's capacitance value is 120pF. As far as positive tolerance is concerned, this part exhibits a tolerance of 5%.The temperature coefficient of resistance is generally defined as the change in electrical resistance of a substance with respect to per degree change in temperature, and its coefficient is C0G, NP0.

C1206C121J5GAC7800 Features

a size/dimension of 0.126 L x 0.063 W (3.20mm x 1.60mm)
a tolerance of 5%
a capacitance value of 120pF
a tolerance of 5%
with C0G, NP0 being the highest temperature coefficient
