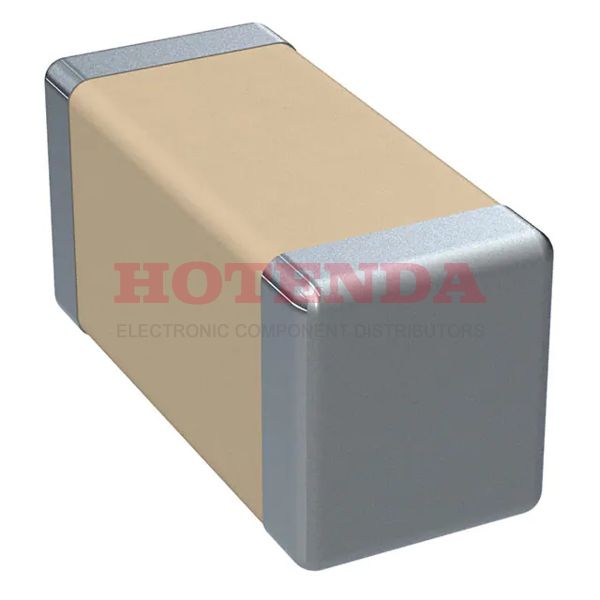

Name: C1206C106K9RAC7800
Brand: KEMET Corporation
SKU: C1206C106K9RAC7800
Price: 0.62000 USD
Availability: InStock

new-10%

C1206C106K9RAC7800

Manufacturer part number:C1206C106K9RAC7800

Manufacturer:KEMET Corporation

Description:SMD Comm X7R 10000000(pF) 6.3V Ceramic Capacitor 10% X7R 0.126 L x 0.063 W (3.20mm x 1.60mm) -55°C ~ 125°C Surface Mount, MLCC 1206

Case Package:SOT-23

Datasheet:C1206C106K9RAC7800 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Package / Case	1206
Mounting Type	Surface Mount, MLCC
Dielectric Material	CERAMIC
Number of Terminals	2
Mounting Style	Surface Mount
ECCN (US)	EAR99
Capacitance Value	10uF
Microwave Application	No
Mounting	Surface Mount
Case Style	Ceramic Chip
Dissipation Factor (%)	10
Size (mm)	3.2 X 1.6 X 1.6
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	125
Product Depth (mm)	1.6
Wire Form	Not Required
Operating Temp Range	-55C to 125C
Product Diameter (mm)	Not Required(mm)
Temp Coeff (Dielectric)	X7R
Lead Diameter (nom)	Not Required(mm)
Tolerance (+ or -)	10%
Rad Hardened	No
Seated Plane Height	Not Required(mm)
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	C1206C
Mfr	KEMET
Product Status	Active
Height - Seated (Max)	-
Manufacturer	KEMET Corporation
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Class	Class 2
Packaging	Tape and Reel
Operating Temperature	-55°C ~ 125°C
Series	SMD Comm X7R
Size / Dimension	0.126 L x 0.063 W (3.20mm x 1.60mm)
Tolerance	10%
JESD-609 Code	e3
Pbfree Code	Yes
Part Status	Active
Termination	Standard
ECCN Code	EAR99
Temperature Coefficient	X7R
Type	X7R Dielectric Commercial Grade MLCCs
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Applications	Bypass, Decoupling
Voltage - Rated	6.3V
HTS Code	8532.24.00.20
Capacitance	10000000(pF)
Subcategory	Capacitors
Packing Method	TR, Plastic, 7 Inch
Construction	Flat
Reach Compliance Code	compliant
Termination Style	Pad
Capacitor Type	CERAMIC CAPACITOR
Dielectric	X7R
Failure Rate	Not Required
Lead Spacing	-
Temperature Characteristics Code	X7R
Multilayer	Yes
Rated (DC) Voltage (URdc)	6.3 V
Size Code	1206
Voltage	6.3VDC
Lead Style	-
Positive Tolerance	10%
Negative Tolerance	10%
Product Type	Ceramic Capacitors
Product	General Type MLCCs
Features	-
Product Length (mm)	3.2
Width	1.6 mm
Height	1.6 mm
Length	3.2 mm
Thickness (Max)	0.071 (1.80mm)
Product Height (mm)	1.6
RoHS Status	RoHS Compliant
Ratings	-

C1206C106K9RAC7800 Product Details

C1206C106K9RAC7800 Overview

Consequently, the program has size/dimension 0.126 L x 0.063 W (3.20mm x 1.60mm).Ceramic capacitor is characterized by negative tolerance 10%.Considering each conductor's capacitance as a ratio of electrical charge to potential difference (i.e., voltage), this device has 10uF.Having a tolerance of 10% for positive tolerance, this part falls within the acceptable range.This coefficient is determined by the change in electrical resistance of a substance as a function of temperature; in general, its coefficient is X7R.

C1206C106K9RAC7800 Features

a size/dimension of 0.126 L x 0.063 W (3.20mm x 1.60mm)
a tolerance of 10%
a capacitance value of 10uF
a tolerance of 10%
with X7R being the highest temperature coefficient
