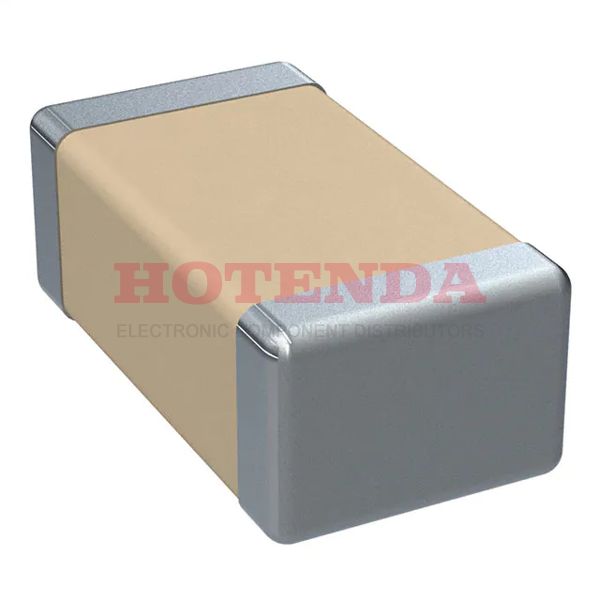

Name: C0805C391J2GAC7800
Brand: KEMET Corporation
SKU: C0805C391J2GAC7800
Price: 0.34000 USD
Availability: InStock

new-10%

C0805C391J2GAC7800

Manufacturer part number:C0805C391J2GAC7800

Manufacturer:KEMET Corporation

Description:SMD Comm C0G 390PF(pF) 200V Ceramic Capacitor 5% C0G, NP0 0.079 L x 0.049 W (2.00mm x 1.25mm) -55°C ~ 125°C Surface Mount, MLCC 0805

Case Package:SOT-23

Datasheet:C0805C391J2GAC7800 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Package / Case	0805
Mounting Type	Surface Mount, MLCC
Number of Terminals	2
Mounting Style	Surface Mount
ECCN (US)	EAR99
Capacitance Value	390pF
Equivalent Series Resistance Type	Extreme Low
Microwave Application	No
Mounting	Surface Mount
Case Style	Ceramic Chip
Dissipation Factor (%)	0.1
Size (mm)	2 X 1.25 X 0.78
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	125
Product Depth (mm)	1.25
Wire Form	Not Required
Operating Temp Range	-55C to 125C
Product Diameter (mm)	Not Required(mm)
Temp Coeff (Dielectric)	C0G
Lead Diameter (nom)	Not Required(mm)
Tolerance (+ or -)	5%
Rad Hardened	No
Seated Plane Height	Not Required(mm)
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	C0805C
Mfr	KEMET
Product Status	Active
Height - Seated (Max)	-
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Class	Class 1
Packaging	Tape and Reel
Operating Temperature	-55°C ~ 125°C
Series	SMD Comm C0G
Size / Dimension	0.079 L x 0.049 W (2.00mm x 1.25mm)
Tolerance	5%
Part Status	Active
Termination	Standard
Temperature Coefficient	C0G, NP0
Type	C0G Dielectric Commercial Grade MLCCs
Applications	General Purpose
Voltage - Rated	200V
Capacitance	390PF(pF)
Subcategory	Capacitors
Construction	Flat
Termination Style	Pad
Dielectric	C0G
Failure Rate	Not Required
Lead Spacing	-
Voltage	200VDC
Lead Style	-
Product Type	Ceramic Capacitors
Product	General Type MLCCs
Features	Low ESL
Product Length (mm)	2
Width	1.25 mm
Height	0.78 mm
Length	2 mm
Thickness (Max)	0.035 (0.88mm)
Product Height (mm)	0.78
RoHS Status	RoHS Compliant
Ratings	-

C0805C391J2GAC7800 Product Details

C0805C391J2GAC7800 Overview

A program's size/dimension is 0.079 L x 0.049 W (2.00mm x 1.25mm) for this device.An electrical device's capacitance value is determined by the ratio of the electric charge on each conductor to the potential difference between them, and this device's capacitance value is 390pF.Its coefficient is C0G, NP0 and determines the change in resistance per degree of temperature for a substance.
