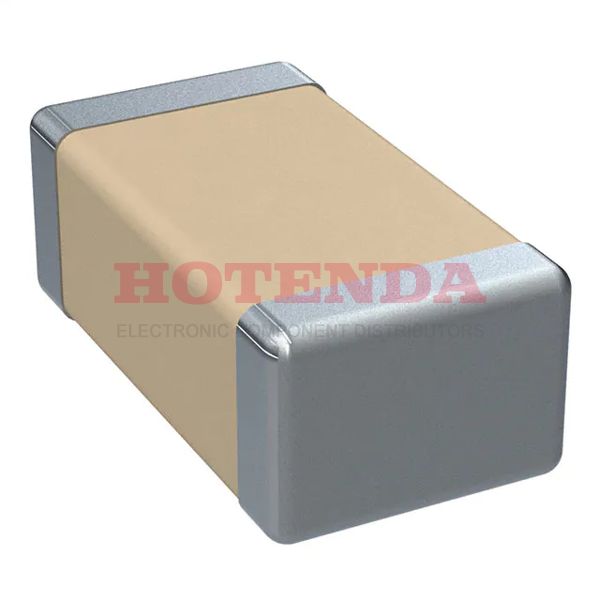

Name: C0805C123K5RAC7800
Brand: KEMET Corporation
SKU: C0805C123K5RAC7800
Price: 0.13000 USD
Availability: InStock

new-10%

C0805C123K5RAC7800

Manufacturer part number:C0805C123K5RAC7800

Manufacturer:KEMET Corporation

Description:SMD Comm X7R 12000(pF) 50V Ceramic Capacitor 10% X7R 0.079 L x 0.049 W (2.00mm x 1.25mm) -55°C ~ 125°C Surface Mount, MLCC 0805

Case Package:SOT-23

Datasheet:C0805C123K5RAC7800 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Package / Case	0805
Mounting Type	Surface Mount, MLCC
Surface Mount	YES
Terminal Shape	WRAPAROUND
Mounting Feature	SURFACE MOUNT
Dielectric Material	CERAMIC
Number of Terminals	2
Mounting Style	Surface Mount
ECCN (US)	EAR99
Capacitance Value	0.012uF
Microwave Application	No
Mounting	Surface Mount
Case Style	Ceramic Chip
Dissipation Factor (%)	2.5
Size (mm)	2 X 1.25 X 0.78
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	125
Product Depth (mm)	1.25
Wire Form	Not Required
Operating Temp Range	-55C to 125C
Product Diameter (mm)	Not Required(mm)
Temp Coeff (Dielectric)	X7R
Lead Diameter (nom)	Not Required(mm)
Tolerance (+ or -)	10%
Rad Hardened	No
Seated Plane Height	Not Required(mm)
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	C0805C
Mfr	KEMET
Product Status	Active
Height - Seated (Max)	-
Package Shape	RECTANGULAR PACKAGE
Manufacturer	KEMET Corporation
Packaging	Tape and Reel
Operating Temperature	-55°C ~ 125°C
Series	SMD Comm X7R
Size / Dimension	0.079 L x 0.049 W (2.00mm x 1.25mm)
Tolerance	10%
JESD-609 Code	e3
Pbfree Code	Yes
Part Status	Active
Temperature Coefficient	X7R
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Applications	Bypass, Decoupling
Voltage - Rated	50V
Capacitance	12000(pF)
Packing Method	TR, PAPER, 7 INCH
Construction	Flat
Reach Compliance Code	compliant
Termination Style	Pad
Capacitor Type	CERAMIC CAPACITOR
Dielectric	X7R
Failure Rate	Not Required
Lead Spacing	-
Temperature Characteristics Code	X7R
Multilayer	Yes
Rated (DC) Voltage (URdc)	50 V
Size Code	0805
Voltage	50VDC
Lead Style	-
Positive Tolerance	10%
Negative Tolerance	10%
Features	-
Product Length (mm)	2
Thickness (Max)	0.035 (0.88mm)
Product Height (mm)	0.78
RoHS Status	RoHS Compliant
Ratings	-

C0805C123K5RAC7800 Product Details

C0805C123K5RAC7800 Overview

A 0.079 L x 0.049 W (2.00mm x 1.25mm) size/dimension program is available for this device.Negative tolerance of 10% is characteristic of this part.Using this device, the capacitance value is 0.012uF, which is the ratio between the electric charge on each conductor and the potential difference (i.e., voltage) between them.Ceramic capacitor possesses a tolerance of 10% when Ceramic capacitor comes to posCeramic capacitorive tolerances.Temperature coefficient of resistance consists of the change in electrical resistance of a substance with respect to each degree change in temperature, and it is X7R.

C0805C123K5RAC7800 Features

a size/dimension of 0.079 L x 0.049 W (2.00mm x 1.25mm)
a tolerance of 10%
a capacitance value of 0.012uF
a tolerance of 10%
with X7R being the highest temperature coefficient
