R82DC3220AA60K

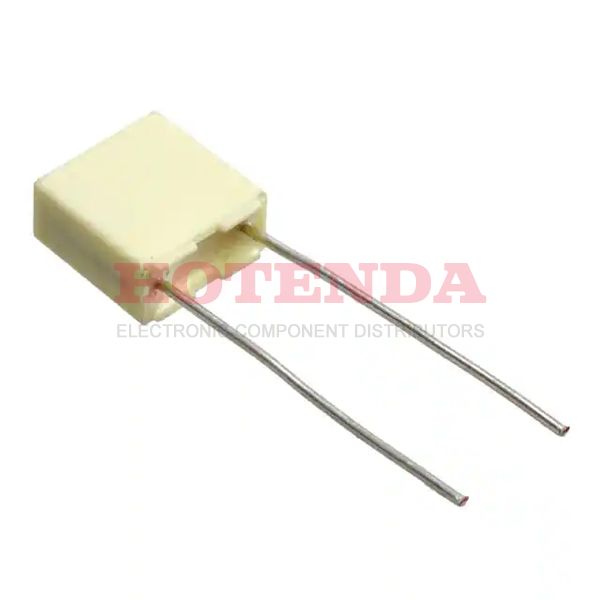

  • R82DC3220AA60K - R82 0.22μF Film Capacitor ±10% Radial PC Pins 63V-DC 40V-AC Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked Through Hole
  • R82DC3220AA60K - R82 0.22μF Film Capacitor ±10% Radial PC Pins 63V-DC 40V-AC Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked Through Hole

R82DC3220AA60K

R82DC3220AA60K

KEMET

R82 0.22μF Film Capacitor ±10% Radial PC Pins 63V-DC 40V-AC Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked Through Hole

SOT-23

R82DC3220AA60K Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 29 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Operating Temperature-55°C~105°C
PackagingBulk
Published 2014
Series R82
Size / Dimension 0.283Lx0.098W 7.20mmx2.50mm
Tolerance ±10%
JESD-609 Code e3
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Type General Purpose
Terminal Finish Tin (Sn)
Applications Automotive
Additional FeatureRATED AC VOLTAGE(V): 40
HTS Code8532.25.00.80
Capacitance 0.22μF
Voltage - Rated DC 63V
Depth 2.5mm
Voltage - Rated AC 40V
Lead Pitch 5mm
Dielectric PET
Lead Spacing0.197 5.00mm
Lead Diameter 500 μm
Size Code 2810
Dissipation Factor80 %
Height 6.5mm
Height Seated (Max) 0.256 6.50mm
Length 7.2mm
Radiation HardeningNo
RoHS StatusROHS3 Compliant
Ratings AEC-Q200
In-Stock:28848 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.159641$0.159641
10$0.150605$1.50605
100$0.142080$14.208
500$0.134038$67.019
1000$0.126451$126.451

R82DC3220AA60K Product Details

R82DC3220AA60K Overview


Lead spacing is 0.197 5.00mm for this electrical device.In addition to operating at -55°C~105°C degrees, the device is capable of operating at other temperatures as well.

R82DC3220AA60K Features



R82DC3220AA60K Applications


There are a lot of KEMET R82DC3220AA60K applications of film capacitors.

  • VCO's
  • Test and measuring equipment
  • TV and monitor sets
  • Mobile communications
  • RFI for automotive
  • Filtering
  • Snubbering
  • Switch-mode power supplies
  • RF Modules
  • Satellite TV
