R76TW356050H3J

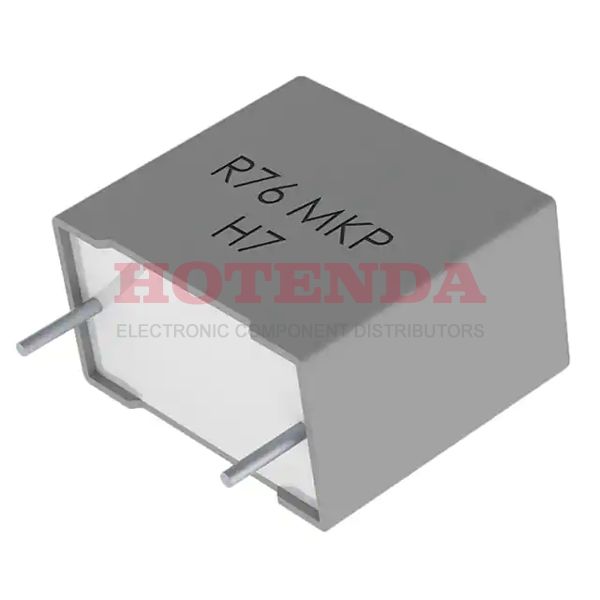

  • R76TW356050H3J - R76 0.56μF Film Capacitor ±5% Radial PC Pins 1600V 1.6kV-DC 650V-AC Polypropylene (PP), Metallized
  • R76TW356050H3J - R76 0.56μF Film Capacitor ±5% Radial PC Pins 1600V 1.6kV-DC 650V-AC Polypropylene (PP), Metallized

R76TW356050H3J

R76TW356050H3J

KEMET

R76 0.56μF Film Capacitor ±5% Radial PC Pins 1600V 1.6kV-DC 650V-AC Polypropylene (PP), Metallized

SOT-23

R76TW356050H3J Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 16 Weeks
Mounting Type Through Hole
Package / Case Radial
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-55°C~125°C
PackagingTray
Series R76
Size / Dimension 1.634Lx0.787W 41.50mmx20.00mm
Tolerance ±5%
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Termination PC Pins
Applications Automotive; High Frequency, Switching; High Pulse, DV/DT
Capacitance 0.56μF
Voltage - Rated DC 1600V 1.6kV
Voltage - Rated AC 650V
ESR (Equivalent Series Resistance) 6mOhm
Lead Spacing1.476 37.50mm
Height Seated (Max) 1.579 40.10mm
RoHS StatusROHS3 Compliant
Ratings AEC-Q200
In-Stock:1531 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$5.49000$5.49
500$5.4351$2717.55
1000$5.3802$5380.2
1500$5.3253$7987.95
2000$5.2704$10540.8
2500$5.2155$13038.75

R76TW356050H3J Product Details

R76TW356050H3J Overview


A device with a 6mOhm ESR (Equivalent Series Resistance) has been identified.Electrical devices have 1.476 37.50mm lead spacing.Temperatures of -55°C~125°C are suitable for operating the device.

R76TW356050H3J Features


6mOhm equivalent series resistance (ESR)


R76TW356050H3J Applications


There are a lot of KEMET
R76TW356050H3J applications of film capacitors.


  • RF Modules
  • Mobile communications
  • Satellite TV
  • Global positioning systems
  • Filters
  • VCO's
  • Matching networks
  • Snubbering
  • Filtering
  • IGBT
