R76PF2100SE30J

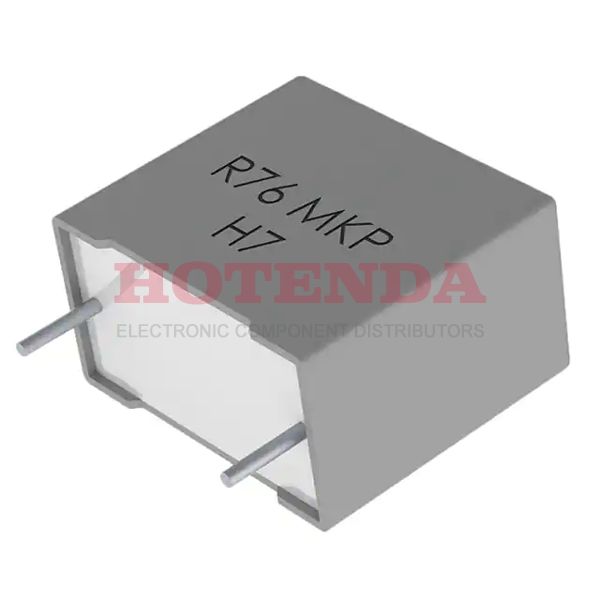

  • R76PF2100SE30J - R76 10000pF Film Capacitor ±5% Radial PC Pins 630V-DC 400V-AC Polypropylene (PP), Metallized Through Hole
  • R76PF2100SE30J - R76 10000pF Film Capacitor ±5% Radial PC Pins 630V-DC 400V-AC Polypropylene (PP), Metallized Through Hole

R76PF2100SE30J

R76PF2100SE30J

KEMET

R76 10000pF Film Capacitor ±5% Radial PC Pins 630V-DC 400V-AC Polypropylene (PP), Metallized Through Hole

SOT-23

R76PF2100SE30J Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 28 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-55°C~110°C
PackagingBulk
Published 2015
Series R76
Size / Dimension 0.512Lx0.197W 13.00mmx5.00mm
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications Automotive; High Frequency, Switching; High Pulse, DV/DT
Additional FeatureRATED AC VOLTAGE (V): 400
HTS Code8532.25.00.70
Capacitance 10000pF
Voltage - Rated DC 630V
Depth 5mm
Voltage - Rated AC 400V
Lead Pitch 10mm
Capacitor Type FILM CAPACITOR
Dielectric PP
Lead Spacing0.394 10.00mm
Lead Diameter 600 μm
Size Code 5120
Height 11mm
Height Seated (Max) 0.437 11.10mm
Length 13mm
Radiation HardeningNo
RoHS StatusROHS3 Compliant
Ratings AEC-Q200
In-Stock:9497 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.754393$0.754393
10$0.711691$7.11691
100$0.671407$67.1407
500$0.633404$316.702
1000$0.597550$597.55

R76PF2100SE30J Product Details

R76PF2100SE30J Overview


Electrical devices such as this have a lead spacing of 0.394 10.00mm.In a temperature range of -55°C~110°C, the device can be operated.

R76PF2100SE30J Features



R76PF2100SE30J Applications


There are a lot of KEMET R76PF2100SE30J applications of film capacitors.

  • Satellite TV
  • Mobile communications
  • Test and measuring equipment
  • Lighting
  • Global positioning systems
  • Filters
  • Industrial and automotive inverters
  • Bypassing
  • IGBT
  • RF Modules
