R76MN34704030J

  • R76MN34704030J - R76 0.47μF Film Capacitor ±5% Radial PC Pins 400V-DC 250V-AC Polypropylene (PP), Metallized Through Hole
  • R76MN34704030J - R76 0.47μF Film Capacitor ±5% Radial PC Pins 400V-DC 250V-AC Polypropylene (PP), Metallized Through Hole

R76MN34704030J

R76MN34704030J

KEMET

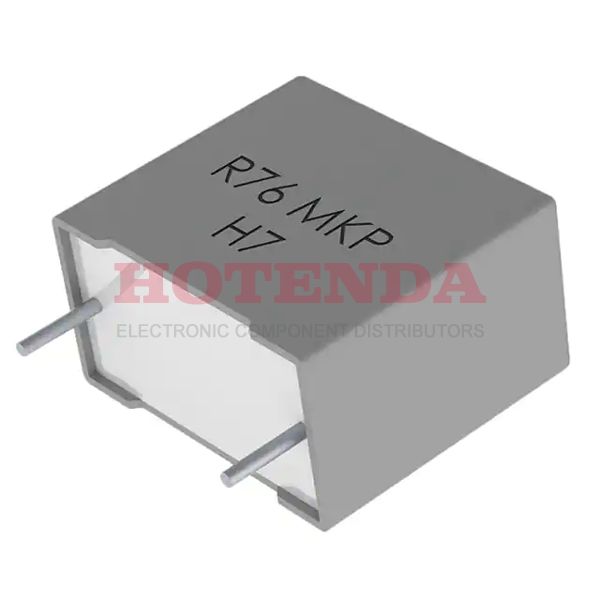

R76 0.47μF Film Capacitor ±5% Radial PC Pins 400V-DC 250V-AC Polypropylene (PP), Metallized Through Hole

SOT-23

R76MN34704030J Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 28 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-55°C~110°C
PackagingBulk
Published 2015
Series R76
Size / Dimension 1.043Lx0.394W 26.50mmx10.00mm
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications Automotive; High Frequency, Switching; High Pulse, DV/DT
Additional FeatureRATED AC VOLTAGE (V): 250
HTS Code8532.25.00.70
Capacitance 0.47μF
Voltage - Rated DC 400V
Terminal Pitch22.5mm
Voltage - Rated AC 250V
Lead Pitch 22.5044mm
Capacitor Type FILM CAPACITOR
Dielectric PP
Lead Spacing0.886 22.50mm
Height Seated (Max) 0.732 18.60mm
Length 26.5mm
Width 10mm
REACH SVHC No SVHC
RoHS StatusROHS3 Compliant
Ratings AEC-Q200
In-Stock:4633 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.707305$1.707305
10$1.610665$16.10665
100$1.519495$151.9495
500$1.433486$716.743
1000$1.352345$1352.345

R76MN34704030J Product Details

R76MN34704030J Overview


0.886 22.50mm is the lead spacing of this electrical device.In a temperature range of -55°C~110°C, the device can be operated.

R76MN34704030J Features



R76MN34704030J Applications


There are a lot of KEMET R76MN34704030J applications of film capacitors.

  • VCO's
  • Bypassing
  • Test and measuring equipment
  • Compact fluorescent lamps (CFL)
  • Matching networks
  • Electronic ballasts
  • Mobile communications
  • Battery management system
  • Coupling, decoupling
  • Blocking
