R60PN33305030K

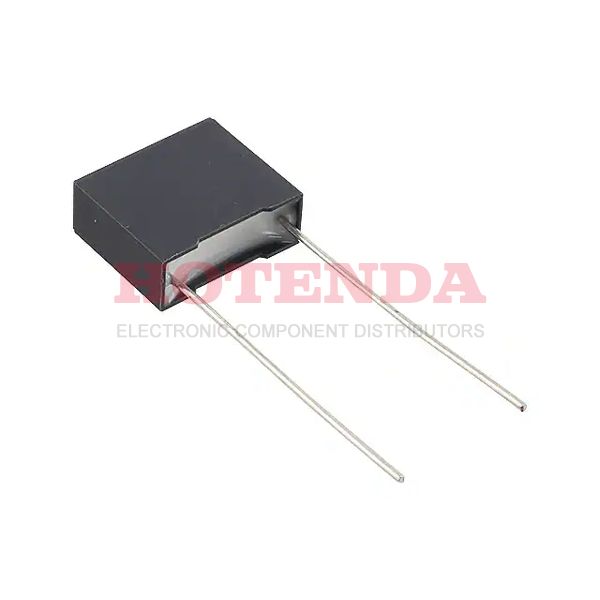

  • R60PN33305030K - R60 0.33μF Film Capacitor ±10% Radial PC Pins 630V-DC 220V-AC Polyester, Polyethylene Terephthalate (PET), Metallized Through Hole
  • R60PN33305030K - R60 0.33μF Film Capacitor ±10% Radial PC Pins 630V-DC 220V-AC Polyester, Polyethylene Terephthalate (PET), Metallized Through Hole

R60PN33305030K

R60PN33305030K

KEMET

R60 0.33μF Film Capacitor ±10% Radial PC Pins 630V-DC 220V-AC Polyester, Polyethylene Terephthalate (PET), Metallized Through Hole

SOT-23

R60PN33305030K Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 20 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Dielectric MaterialPolyester, Polyethylene Terephthalate (PET), Metallized
Operating Temperature-55°C~105°C
PackagingBulk
Published 2014
Series R60
Size / Dimension 1.043Lx0.394W 26.50mmx10.00mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
Terminal Finish Tin (Sn)
Applications Automotive
Capacitance 0.33μF
Voltage - Rated DC 630V
Terminal Pitch22.5mm
Voltage - Rated AC 220V
Lead Pitch 22.5044mm
Capacitor Type FILM CAPACITOR
Dielectric PET
Lead Spacing0.886 22.50mm
Height Seated (Max) 0.732 18.60mm
Length 26.5mm
Width 10mm
REACH SVHC No SVHC
RoHS StatusROHS3 Compliant
Ratings AEC-Q200
In-Stock:12693 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.07000$1.07
10$0.84500$8.45
100$0.63340$63.34
500$0.47856$239.28

R60PN33305030K Product Details

R60PN33305030K Overview


Electrical devices have 0.886 22.50mm lead spacing.Temperatures of -55°C~105°C are suitable for operating the device.

R60PN33305030K Features




R60PN33305030K Applications


There are a lot of KEMET
R60PN33305030K applications of film capacitors.


  • RF Modules
  • Mobile communications
  • Satellite TV
  • Global positioning systems
  • Filters
  • VCO's
  • Matching networks
  • Snubbering
  • Filtering
  • IGBT
