R46KR422050M2K

  • R46KR422050M2K - R46 2.2μF Film Capacitor ±10% Radial PC Pins 560V-DC 275V-AC Polypropylene (PP), Metallized Through Hole
  • R46KR422050M2K - R46 2.2μF Film Capacitor ±10% Radial PC Pins 560V-DC 275V-AC Polypropylene (PP), Metallized Through Hole

R46KR422050M2K

R46KR422050M2K

KEMET

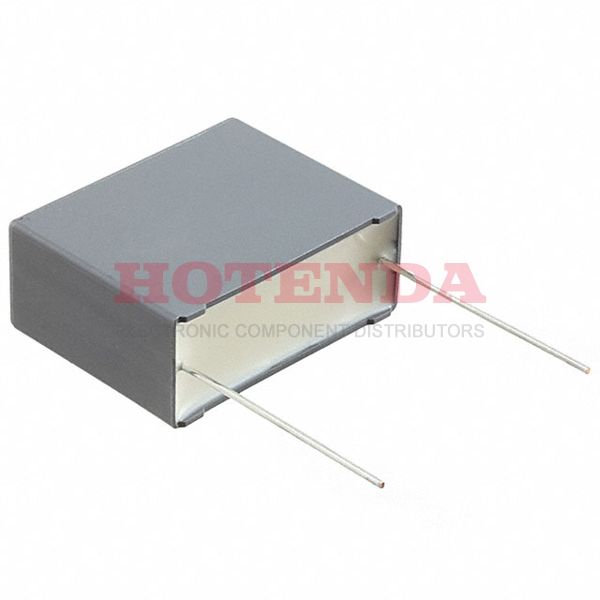

R46 2.2μF Film Capacitor ±10% Radial PC Pins 560V-DC 275V-AC Polypropylene (PP), Metallized Through Hole

SOT-23

R46KR422050M2K Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 30 Weeks
Contact PlatingTin
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Number of Pins 2
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-40°C~110°C
PackagingBulk
Published 2007
Series R46
Size / Dimension 1.260Lx0.512W 32.00mmx13.00mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Applications EMI, RFI Suppression
Capacitance 2.2μF
Voltage - Rated DC 560V
Depth 13mm
Reference Standard IEC60384-14
Voltage - Rated AC 275V
Lead Pitch 27.5mm
Capacitor Type FILM CAPACITOR
Lead Length 25mm
Dielectric PP
Lead Spacing1.083 27.50mm
Lead Diameter 800 μm
Dissipation Factor10 %
Height 13mm
Height Seated (Max) 0.988 25.10mm
Radiation HardeningNo
REACH SVHC No SVHC
RoHS StatusROHS3 Compliant
Ratings X2
In-Stock:3224 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.801549$1.801549
10$1.699575$16.99575
100$1.603372$160.3372
500$1.512615$756.3075
1000$1.426995$1426.995

R46KR422050M2K Product Details

R46KR422050M2K Overview


Electrical devices with 1.083 27.50mm lead spacing are used in this application.A temperature of -40°C~110°C is suitable for operation of the device.

R46KR422050M2K Features



R46KR422050M2K Applications


There are a lot of KEMET R46KR422050M2K applications of film capacitors.

  • TV and monitor sets
  • RF Modules
  • Filters
  • Switch-mode power supplies
  • Electronic ballasts
  • Test and measuring equipment
  • RFI for automotive
  • Industrial and automotive inverters
  • Mobile communications
  • Compact fluorescent lamps (CFL)
