PHE820MB5470MR17

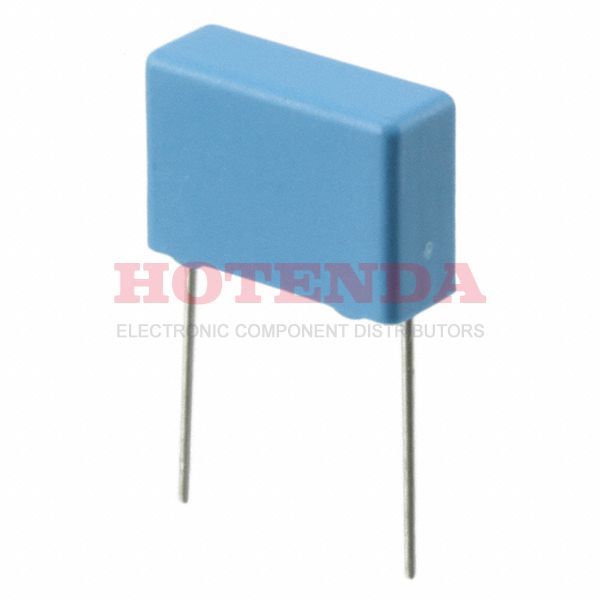

  • PHE820MB5470MR17 - PHE820 0.047μF Film Capacitor ±20% Radial PC Pins 275V-AC Polyester, Metallized Through Hole
  • PHE820MB5470MR17 - PHE820 0.047μF Film Capacitor ±20% Radial PC Pins 275V-AC Polyester, Metallized Through Hole

PHE820MB5470MR17

PHE820MB5470MR17

KEMET

PHE820 0.047μF Film Capacitor ±20% Radial PC Pins 275V-AC Polyester, Metallized Through Hole

SOT-23

PHE820MB5470MR17 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 29 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~100°C
PackagingBulk
Published 2014
Series PHE820
Size / Dimension 0.709Lx0.256W 18.00mmx6.50mm
Tolerance ±20%
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Applications EMI, RFI Suppression
Additional FeatureRATED AC VOLTAGE (V): 275
HTS Code8532.25.00.70
Capacitance 0.047μF
Depth 6.5mm
Voltage - Rated AC 275V
Lead Pitch 15mm
Capacitor Type FILM CAPACITOR
Dielectric PET
Lead Spacing0.591 15.00mm
Lead Diameter 800 μm
Height 6.5mm
Height Seated (Max) 0.492 12.50mm
Length 18mm
Radiation HardeningNo
RoHS StatusROHS3 Compliant
Ratings X2
In-Stock:23355 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.211182$1.211182
10$1.142624$11.42624
100$1.077948$107.7948
500$1.016932$508.466
1000$0.959370$959.37

PHE820MB5470MR17 Product Details

PHE820MB5470MR17 Overview


Its lead spacing is 0.591 15.00mm.Temperatures of -40°C~100°C allow the device to operate.

PHE820MB5470MR17 Features




PHE820MB5470MR17 Applications


There are a lot of KEMET
PHE820MB5470MR17 applications of film capacitors.


  • Battery management system
  • Test and measuring equipment
  • RF Modules
  • Mobile communications
  • Satellite TV
  • Global positioning systems
  • Filters
  • VCO's
  • Matching networks
  • Snubbering
