PHE450MD6100JR06L2

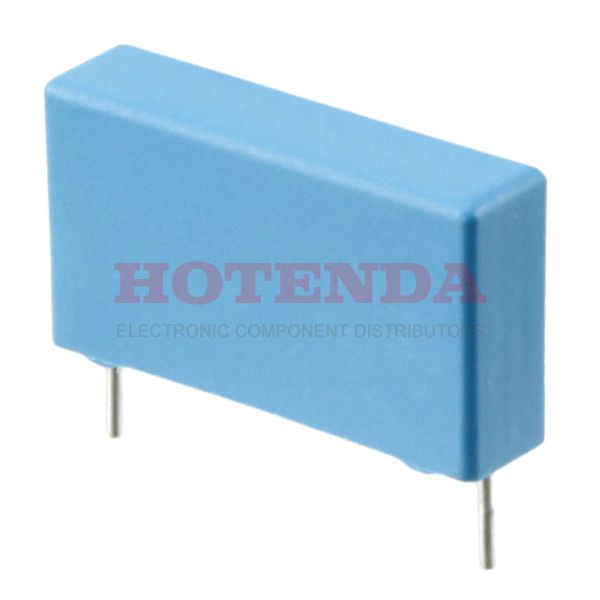

  • PHE450MD6100JR06L2 - PHE450 0.1μF Film Capacitor ±5% Radial PC Pins 630V-DC 400V-AC Polypropylene (PP), Metallized Through Hole
  • PHE450MD6100JR06L2 - PHE450 0.1μF Film Capacitor ±5% Radial PC Pins 630V-DC 400V-AC Polypropylene (PP), Metallized Through Hole

PHE450MD6100JR06L2

PHE450MD6100JR06L2

KEMET

PHE450 0.1μF Film Capacitor ±5% Radial PC Pins 630V-DC 400V-AC Polypropylene (PP), Metallized Through Hole

SOT-23

PHE450MD6100JR06L2 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 28 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-55°C~105°C
PackagingBulk
Published 2012
Series PHE450
Size / Dimension 1.024Lx0.256W 26.00mmx6.50mm
Tolerance ±5%
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Applications High Frequency, Switching
Additional FeatureRATED AC VOLTAGE (V): 400
HTS Code8532.25.00.70
Capacitance 0.1μF
Voltage - Rated DC 630V
Depth 6.5mm
Voltage - Rated AC 400V
Lead Pitch 22.5mm
Capacitor Type FILM CAPACITOR
Dielectric PP
Lead Spacing0.886 22.50mm
Lead Diameter 800 μm
Voltage 630V
Height 6.5mm
Height Seated (Max) 0.571 14.50mm
Length 26mm
REACH SVHC No SVHC
RoHS StatusROHS3 Compliant
In-Stock:3221 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.83000$1.83
10$1.47800$14.78
100$1.12830$112.83
500$0.85968$429.84

PHE450MD6100JR06L2 Product Details

PHE450MD6100JR06L2 Overview


Electrical devices have 0.886 22.50mm lead spacing.Temperatures as low as -55°C~105°C are suitable for the device.

PHE450MD6100JR06L2 Features



PHE450MD6100JR06L2 Applications


There are a lot of KEMET PHE450MD6100JR06L2 applications of film capacitors.

  • Switch-mode power supplies
  • RFI for automotive
  • Mobile communications
  • Industrial and automotive inverters
  • Snubbering
  • Global positioning systems
  • Blocking
  • Bypassing
  • Matching networks
  • RF Modules
