JSNDK5560KB6L0

  • JSNDK5560KB6L0 - JSN 56μF Film Capacitor ±10% SMD, J-Lead 63V-DC 40V-AC Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
  • JSNDK5560KB6L0 - JSN 56μF Film Capacitor ±10% SMD, J-Lead 63V-DC 40V-AC Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked

JSNDK5560KB6L0

JSNDK5560KB6L0

KEMET

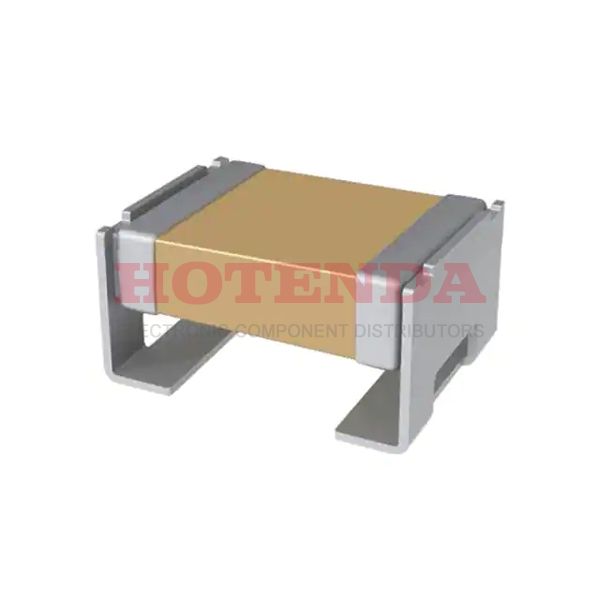

JSN 56μF Film Capacitor ±10% SMD, J-Lead 63V-DC 40V-AC Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked

SOT-23

JSNDK5560KB6L0 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 12 Weeks
Mounting Type Surface Mount
Package / Case SMD, J-Lead
Dielectric MaterialPolyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Operating Temperature-55°C~125°C
PackagingBulk
Series JSN
Size / Dimension 0.681Lx0.846W 17.30mmx21.50mm
Tolerance ±10%
Feature Low ESR, Low ESL
Part StatusActive
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Applications DC Link, DC Filtering
Capacitance 56μF
Voltage - Rated DC 63V
Voltage - Rated AC 40V
Height Seated (Max) 0.701 17.80mm
RoHS StatusROHS3 Compliant
In-Stock:319 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$24.25000$24.25
10$22.97500$229.75
100$18.50770$1850.77
500$16.59308$8296.54

JSNDK5560KB6L0 Product Details

JSNDK5560KB6L0 Overview


Temperatures of -55°C~125°C allow the device to operate.

JSNDK5560KB6L0 Features




JSNDK5560KB6L0 Applications


There are a lot of KEMET
JSNDK5560KB6L0 applications of film capacitors.


  • Battery management system
  • Test and measuring equipment
  • RF Modules
  • Mobile communications
  • Satellite TV
  • Global positioning systems
  • Filters
  • VCO's
  • Matching networks
  • Snubbering
