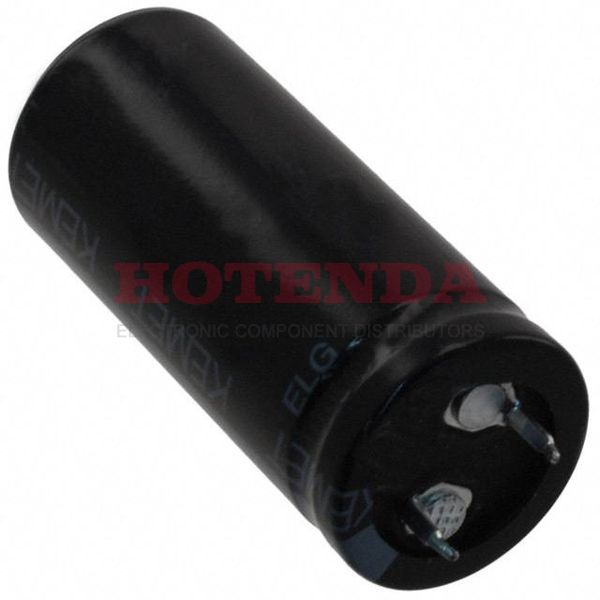

ELG687M200AQ6AA Overview
At full charge, the ripple current is 2.625A @ 10kHz.In order to fully utilize 121mOhm @ 20kHz, ESR (Equivalent Series Resistance) needs to be provided.The ripple current at the lowest charge is 1.75A @ 120Hz.Keep your seated height below 2.047 52.00mm.Despite its 0.15 % dissipation factor, it still operates.Voltage - Rated DC of 200V controls this capacitor.The operating temperature should be maintained at -25°C~105°C for high efficiency.
ELG687M200AQ6AA Features
the ripple current is 2.625A @ 10kHz.
the ripple current is 1.75A @ 120Hz.
a dissipation factor of 0.15 %
voltage - Rated DC of 200V
an operating temperature of -25°C~105°C
ELG687M200AQ6AA Applications
There are a lot of KEMET ELG687M200AQ6AA applications of aluminum electrolytic capacitors.
- Energy storage in pulse systems
- Computer motherboards
- Computer
- Industrial systems
- Power supplies
- Standard and switched mode power supplies
- Smoothing and filtering applications
- Frequency converters
- Telecommunication
- Uninterruptible power supplies
