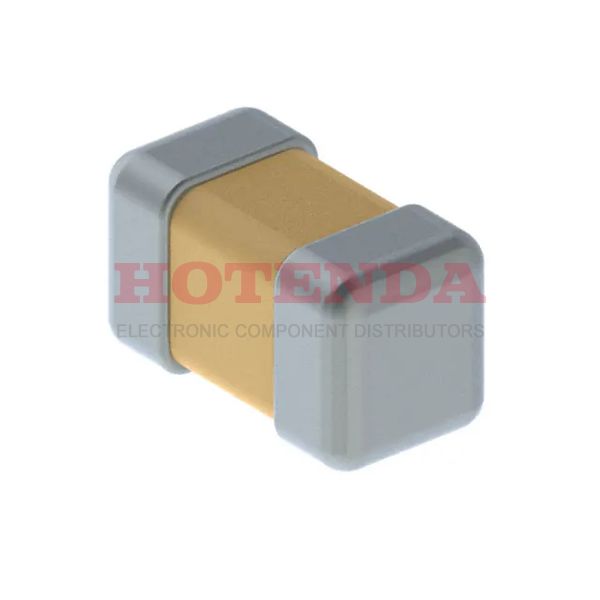

Name: CBR04C129B1GAC
Brand: KEMET
SKU: CBR04C129B1GAC
Price: 0.28000 USD
Availability: InStock

new-10%

CBR04C129B1GAC

Manufacturer part number:CBR04C129B1GAC

Manufacturer:KEMET

Description:CBR04C129B1GAC datasheet pdf and Ceramic Capacitors product details from KEMET stock available on our website

Case Package:SOT-23

Datasheet:CBR04C129B1GAC Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	31 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount, MLCC
Package / Case	0402 (1005 Metric)
Terminal Shape	WRAPAROUND
Material	Ceramic
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Published	2016
Series	CBR-SMD RF C0G
Size / Dimension	0.039Lx0.020W 1.00mmx0.50mm
Tolerance	±0.1pF
JESD-609 Code	e3
Feature	High Q, Low Loss, Ultra Low ESR
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Temperature Coefficient	C0G NP0
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Applications	RF, Microwave, High Frequency
HTS Code	8532.24.00.20
Capacitance	1.2pF
Voltage - Rated DC	100V
Packing Method	TR, PUNCHED PAPER, 7 INCH
Case Code (Metric)	1005
Case Code (Imperial)	0402
Temperature Characteristics Code	C0G
Multilayer	Yes
Height	550μm
Length	1mm
Width	0.5mm
Thickness (Max)	0.022 0.55mm
Thickness	558.8μm
RoHS Status	ROHS3 Compliant

CBR04C129B1GAC Product Details

CBR04C129B1GAC Overview

In the case of this device, the size/dimension of the program is 0.039Lx0.020W 1.00mmx0.50mm.This coefficient equals C0G NP0 indicates that a substance's electrical resistance changes with temperature per degree change.A voltage of 100V can be used for operation.
